Levin

I made a post about my Levin guitars back in 2011 when I started to collect them but it feels like it’s time for an update. Here they are:

Levin Model 2 Parlour Made in Sweden 1914Levin Model 3 Made in Sweden 1914

Levin Goya F-11 Made in Sweden by Levin 1963Goya F-11 Made in Sweden by Levin in 1963

Rondo Model 29 Made in Sweden by Levin in 1960Rondo Model 29 Made in Sweden by Levin in 1960

Levin LT-14 / Goya T-14 Made in Sweden 1965Levin LT-14 Made in Sweden 1965

Levin LT-16 Made in Sweden 1966Levin LT-16 Made in Sweden 1966

Levin Goya T-16 Made in Sweden 1965
Goya T-16 Made in Sweden by Levin in 1965

Goya T-16, made in Sweden by Levin in 1966
Goya T-16 Made in Sweden by Levin in 1966

Levin LS-16 Made in Sweden 1963Levin LS-16 Made in Sweden in 1963

Levin LS-18 Made in Sweden 1960Levin LS-18 Made in Sweden 1960

Levin LT-18 Made in Sweden 1963Levin LT-18 Made in Sweden 1963

Levin LT-18 Made in Sweden 1966Levin LT-18 Made in Sweden 1966

Levin LT-18 Made in Sweden 1968
Levin LT-18 Made in Sweden 1968

Levin Goya T-18 Made in Sweden 1966Goya T-18 Made in Sweden by Levin 1966

Levin Goya T-23 Made in Sweden 1966
Levin Goya T-23 Made in Sweden 1966

Levin LM-26 1959Levin LM-26 Made in Sweden 1959

Levin LM-26 Made in Sweden 1959Levin LM-26 Made in Sweden 1959

Levin LM-26 Made in Sweden 1963Levin LM-26 Made in Sweden 1963

Levin Goya 172 Made in Sweden 1970Goya GG-172 Made in Sweden by Levin 1970

Levin Goya 163 Made in Sweden 1968 #307008Goya Model 163 Made in Sweden by Levin 1968

Levin Model 174 Made in Sweden 1972Levin Model 174 Made in Sweden 1972

Levin Model 3 Royal Made in Sweden 1951Levin Model 3 Royal made in Sweden 1951

These Levin guitars used to be a part of my collection but I had to sell them to make space for other Levin guitars:

Levin Model 32 Made in Sweden 1946Levin Model 32 made in Sweden in 1946

Levin Model 65 parlour guitar Made in Sweden 1942Levin Model 65 parlour guitar Made in Sweden 1942

Levin Model 13 Ambassadör Made in Sweden 1950Levin Model 13 Ambassadör Made in Sweden 1950



Advertisements

Levin LM-26

Levin LM-26 Made in Sweden 1959Levin LM-26, Made in Sweden in 1959

In the end of March, about 2-3 weeks after I bought the 1963 Levin LM-26, I was offered a 1959 Levin LM-26 that I couldn’t resist, even though I already had one from that year. The seller Ian was quite persistent that I added his guitar, that he had owned since his 14th birthday in 1976, to my Levin collection so I of course complied. The guitar has been used playing anything from jazz, Mississippi blues to Celtic folk and now country, read Ian’s guitar history. Now I have one Levin LM-26 built in 1963 and two from 1959, well they actually both has a body stamped in 1958 but with a 1959 neck, not sure if they did a lot of bodies one year and necks the next. I have some Levin LT-18 that has a Goya serial number stamped inside and a completely different Levin serial number on the head, I guess these things happens at a guitar factory. This 1959 Levin LM-26 seems to be completely original, it even has the cheap looking machine heads that Levin used in the late 1950’s on the LM-series. On my other 1959 Levin LM-26 the machine heads were replaced by open back Grover’s by the second owner back in 1965 and I think I might have to do the same on this one. I like the ones they used on the Levin LS-18 at the time, they are rounder and look more Gibson like, these square ones look like something from an Egmond or a kids guitar. The guitar plays really nicely and sounds great, really full and warm as could be expected of an all solid Swedish built guitar from the late 1950’s.

Levin LM-26 Made in Sweden 1959
Levin LM-26 Made in Sweden 1959

Levin LM-26 / Goya M-26
Goliath size: Body width: 400 mm, body length: 505 mm, body depth: 95/120 mm
Fingerboard width: 43 mm, scale length: 630 mm
Spruce top, flame maple back and sides, 4-ply bound top, single-bound back
Mahogany bolt-on neck with adjustable truss rod
Metal truss rod cover with a star and “1900”, nickel plated tuners
Single-bound rosewood fingerboard with centred pearl dot inlay, rosewood bridge
Sunburst finish and ten year warranty

Marketed by U.K. distributors as Goliath Model 1795

Levin LM-26 Made in Sweden 1959



Levin LM-26

Levin LM-26 Made in Sweden 1963Levin LM-26, Made in Sweden in 1963

Two weeks ago I got myself another Levin LM-26. My previous one was built in 1958/59 and feels a bit fragile, it is also in a pretty good state for taking out gigging. So this 1963 Levin LM-26 felt perfect to fit a LR Bagg M1A in and take out and enjoy on stage. Guitars are meant to be used and played, even vintage ones, so in a way I would be happy to take any of my Levin’s out of the house. It’s just that some of them feels a bit too well kept for the dangers of having them in bars around drunk people, and myself slightly intoxicated hitting them harder than I should because I play with a loud band and can’t hear myself properly and such, you all know how it is. Anyway, now I have a great backup acoustic for playing live and I was missing something in sunburst to match the Claescaster I put together four years ago.

Levin LM-26 Made in Sweden 1963
Levin LM-26 Made in Sweden 1963I had to do the normal work to it, reset the neck by sanding down the heel. Fill all the dents and marks on the back of the neck with Nitro lacquer and then sand it smooth. Take the machine heads apart and clean them properly before I greased them up and put them back on. Cut a new bone saddle and then paint both the saddle and nut to match Levin’s original squirrel coloured Galalith parts. Polish frets, clean and oil the fretboard and then a general good clean of the whole guitar. If you want see pictures of any of this than have a look at how I restored the old Levin LM-26.

Levin LM-26 Made in Sweden 1963

Levin LM-26 / Goya M-26
Goliath size: Body width: 400 mm, body length: 505 mm, body depth: 95/120 mm
Fingerboard width: 43 mm, scale length: 630 mm
Spruce top, flame maple back and sides, 4-ply bound top, single-bound back
Mahogany bolt-on neck with adjustable truss rod
Metal truss rod cover with a star and “1900”, nickel plated tuners
Single-bound rosewood fingerboard with centred pearl dot inlay, rosewood bridge
Sunburst finish and ten year warranty

Marketed by U.K. distributors as Goliath Model 1795

Claes Anderson Band – Standing tall over the ones that have fallen, The Cavern Club, Terrassa 17th March 2017

Levin Model 3

Levin Model 2 Parlour Made in Sweden 1914
Levin Model 3 Parlour Made in Sweden 1914

In the year of our Lord 1914 a terrible war broke out in Europe, at the same time this beautiful guitar was made in Sweden. I finally found myself an old Levin parlour, a 1914 Levin Model 3. When I sold the Levin Model 65 back in December I promised myself to find another Levin parlour, but older, and nicer. I did, it took 10 days. I was super lucky and managed to win this Model 3 on an auction the day before Christmas, perhaps that’s why the competition wasn’t so fierce. It’s in pretty decent original shape for being 103 years old, no real damage to it. It looks like the back has been removed and glued back at some point so I guess someone has re-glued some lose braces. I can’t see any signs of a neck reset but since it’s so playable after 100 years I assume that someone has done that too. I love the original machine heads with their bone buttons and the brass medallion on the back of the head is just beautiful. It sounds way better than I expected. I’ve had a couple of early German parlours at home and they have sound very thin, weak and boxy somehow. This Levin is loud, clear and warm at the same time, even though it’s ladder braced. For being one of Levin’s cheapest models I think it’s an amazing guitar and it looks stunning in it’s simplicity.

Levin Model 2 Parlour Made in Sweden 1914
Levin Model 2 Parlour Made in Sweden 1914
The back and sides are made of birch that is painted to look like Brazilian rosewood. I would have preferred the real deal but I guess it was both expensive and hard to come by exotic woods at the time.

Levin Model 3
Body width: 315 mm, length: 460 mm, depth: 78 mm
Spruce top with ladder bracing, birch back and sides
Unbound walnut fingerboard with mother-of-pearl dot inlay
Triple wood bound top, unbound back and headstock
Brass frets, brass tuners, pyramid bridge, bridge pins and strap button with mother-of-pearl inlay. Rosewood finished back and sides with an orange finished top.

Introduced circa 1900

Levin Model 2 Parlour Made in Sweden 1914The stamp on the right side is from Frälsningsarmén, The Salvation Army in Stockholm. I assume a lot of songs about Jesus has been played on this guitar over the years.

The old Levin factory on Norra Larmgatan 4 in Gothenburg, Sweden 1910-20The old Levin factory on Norra Larmgatan 4 in Gothenburg, Sweden, around 1920. Taken from Vintage Guitars Sweden





Goya F-11

img_7029-2Goya F-11, made in Sweden by Levin in 1963

Back in May I bought a 1963 Goya F-11 from a pawn shop San Diego, California. It’s my 18th Levin so far but my first steel stringed classical guitar, or it’s actually more of a Flamenco shape than a normal Spanish guitar. It’s an awesome little finger picker with a wide nut and pretty small body, very comfortable to play in the sofa. The sound is very different, I guess because it’s a steel stringed but fan braced and built like a classical guitar. These type of guitars got really popular in the mid 1960’s during the folk boom in the US and Levin built quite a few under the Goya brand to compete with the Gibson F-25 and other concert sized steel stringed folk guitars of the time. I have never played anything like this before and really like it, even though it doesn’t sound as good as a Goya T-16 for chord playing, it has something almost ladder braced like in the sound that makes it pretty unique.

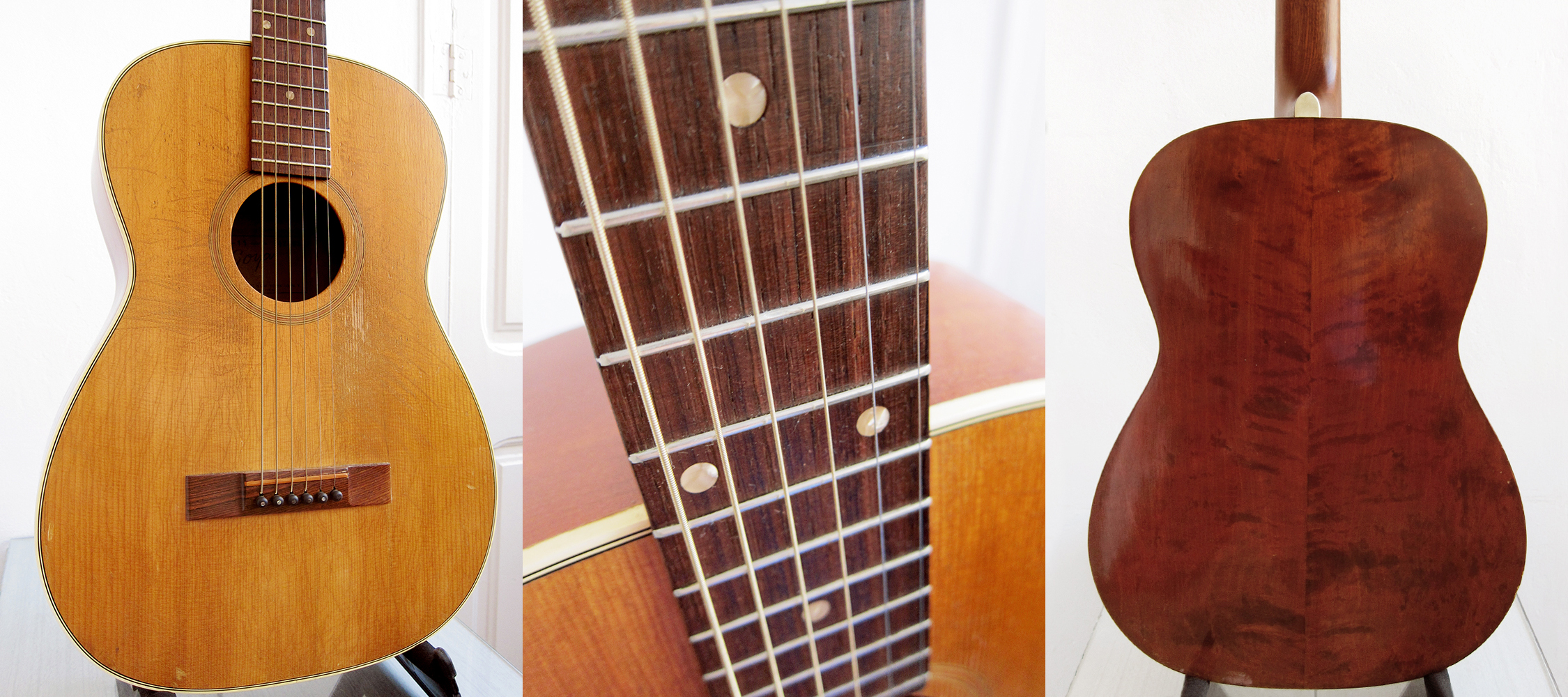

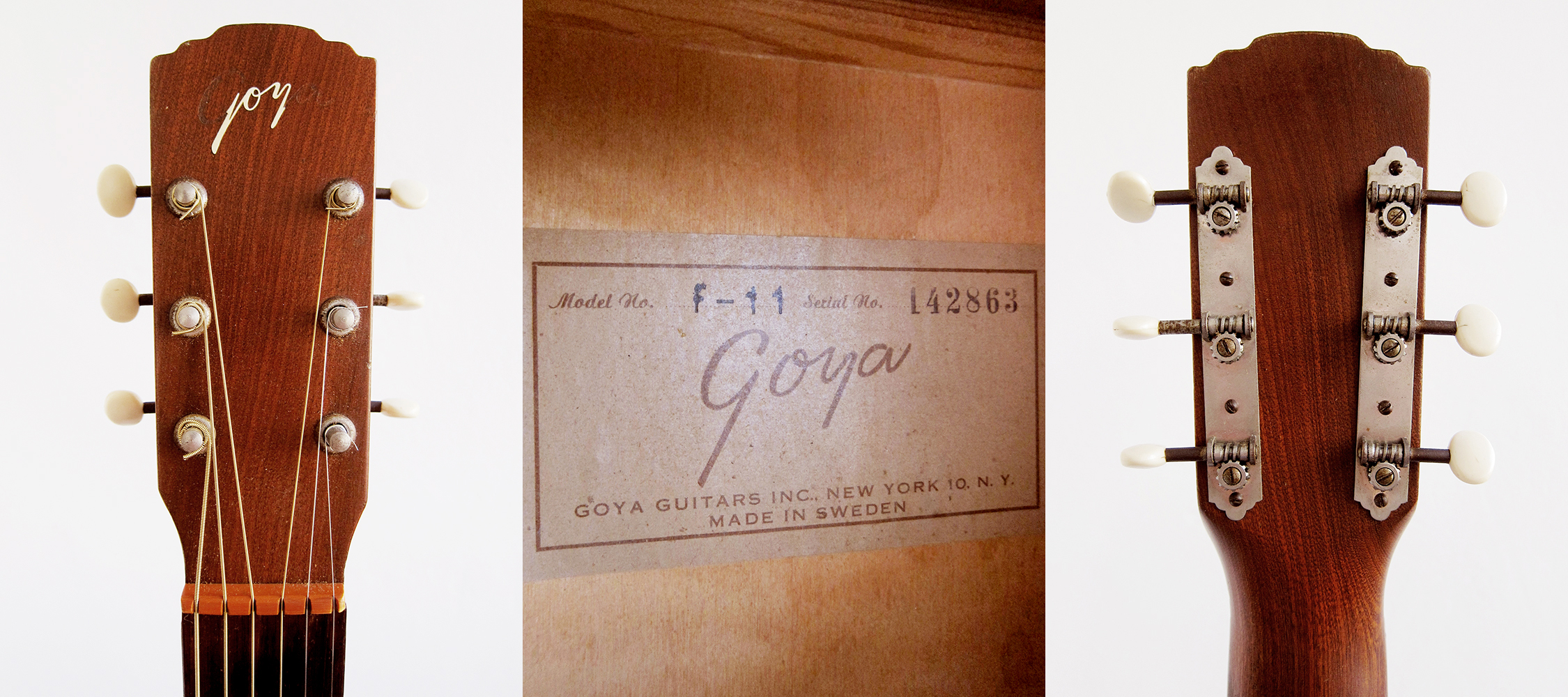

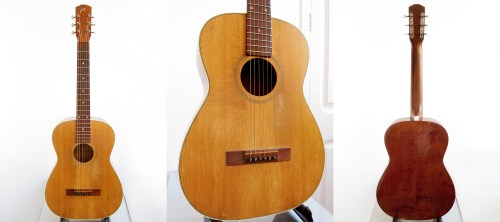

levin-goya-f-11-1Levin Goya F-11 Made in Sweden 1963Levin Goya F-11 Made in Sweden 1963A 1963 Goya F-11, worn, bruised and beaten but still very beautiful, I love the flamed back. It’s fun that half the logo has been removed to read Joy instead of Goya.

Goya F-11
Concert size: Body width: 360 mm, body length: 465 mm, body depth: 98 mm. Fingerboard width: 43 mm, scale length: 630 mm. Spruce top with fan bracing, birch back and sides, 4-ply bound top, unbound back. Mahogany neck with non-adjustable T-shaped duraluminum truss rod. Unbound rosewood fingerboard with pearl dot inlay. Rosewood bridge, double pickguards and nickel plated strip tuners.  Matte natural finish

Goya Catalog 1964Taken from a 1964 Goya catalogue

Goya T-16

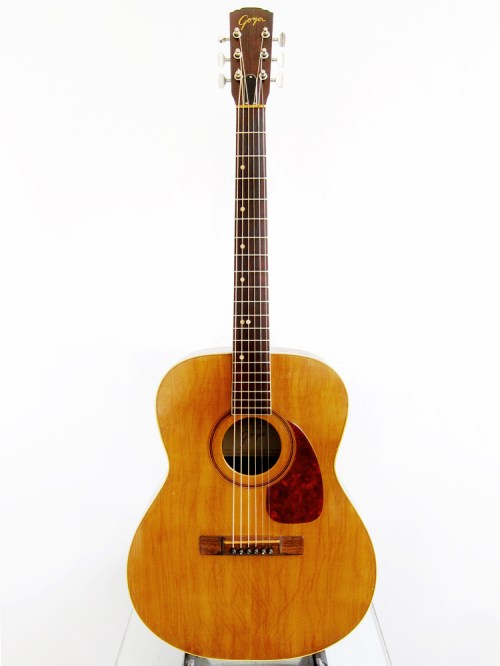

Goya T-16, made in Sweden by Levin in 1966Goya T-16, made in Sweden by Levin in 1966

I found another Goya T-16 that I couldn’t resist. I’m not sure why I love these so much, if it’s the sound, shape or the fact that my dad’s old Levin LT-16 was my first guitar. This one seems to have had a crack in the lower bout on the bottom side and when that was fixed they gave the side a light burst to cover it and then lacquered the whole guitar. Back in the 1960’s when these guitars left the factory in Sweden, the Levin LT-16 came with a really nice satin finish and the Goya T-16 with a high gloss that cracked over time. The previous Goya T-16 was sanded down and this one had an extra coat of lacquer so I guess people weren’t entirely happy with the finish on these. They both sounds very different, the old one sounds more woody and dry and this one has a clearer snappier sound, I presume because of the lacquer. I really like the look of the top, more orange and pre-war Martin looking than the normal Goya T-16.

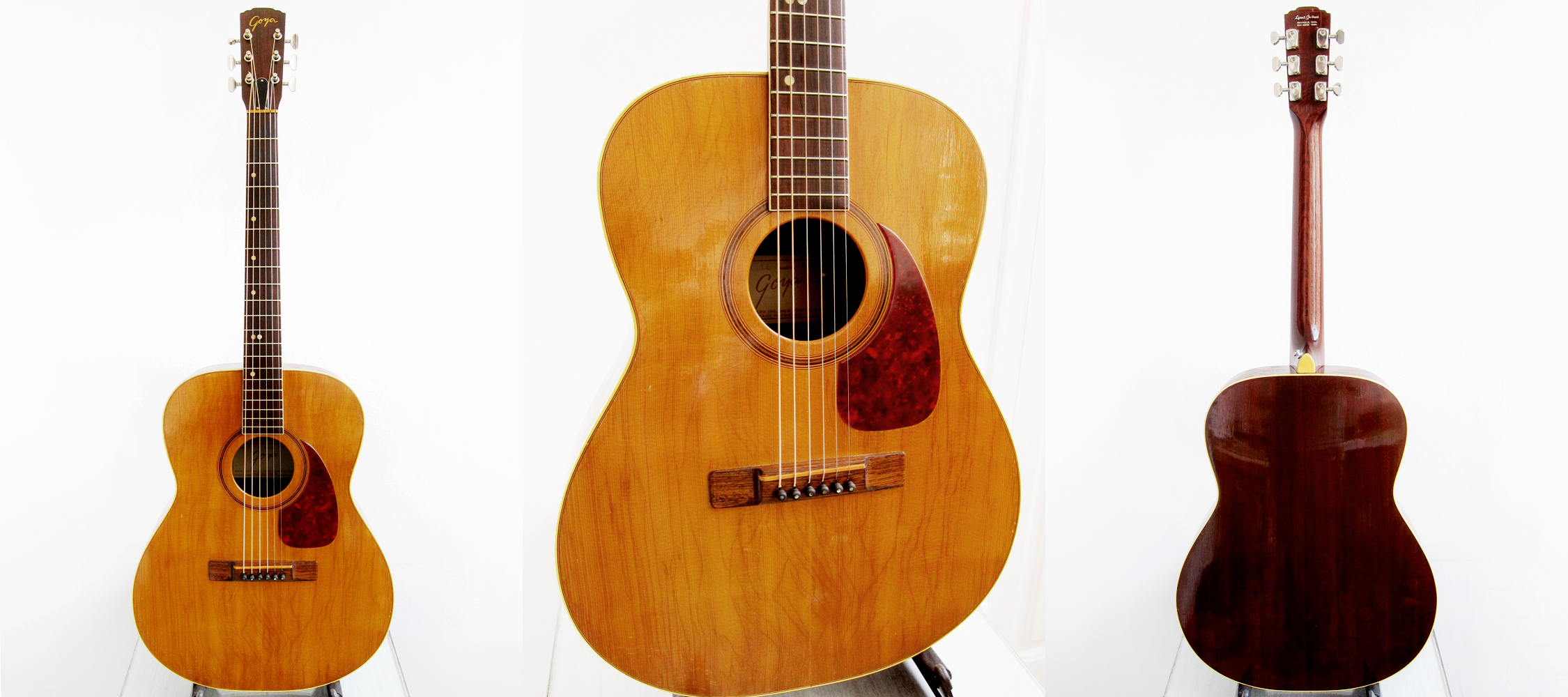

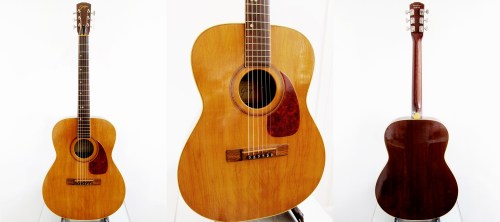

Goya T-16, made in Sweden by Levin in 1966Goya T-16, made in Sweden by Levin in 1966Goya T-16, made in Sweden by Levin in 1966I bought this 1966 Goya T-16 from an eBay seller in Illinois but I guess it first landed at Lynn’s Guitars in Knoxville Tennessee when it came from Sweden in the 1960’s.

Levin LT-16 / Goya T-16
Grand Concert size: Body width: 380 mm, body length: 480 mm, body depth: 98 mm. Fingerboard width: 43 mm, scale length: 630 mm. Spruce top, mahogany back and sides, 4-ply bound top, single-bound back. Mahogany bolt-on neck with adjustable truss rod. Single-bound rosewood fingerboard with bass side pearloid dot inlay. Rosewood bridge, nickel plated individual Van Gent tuners with metal buttons. Matte natural finish and ten year warranty

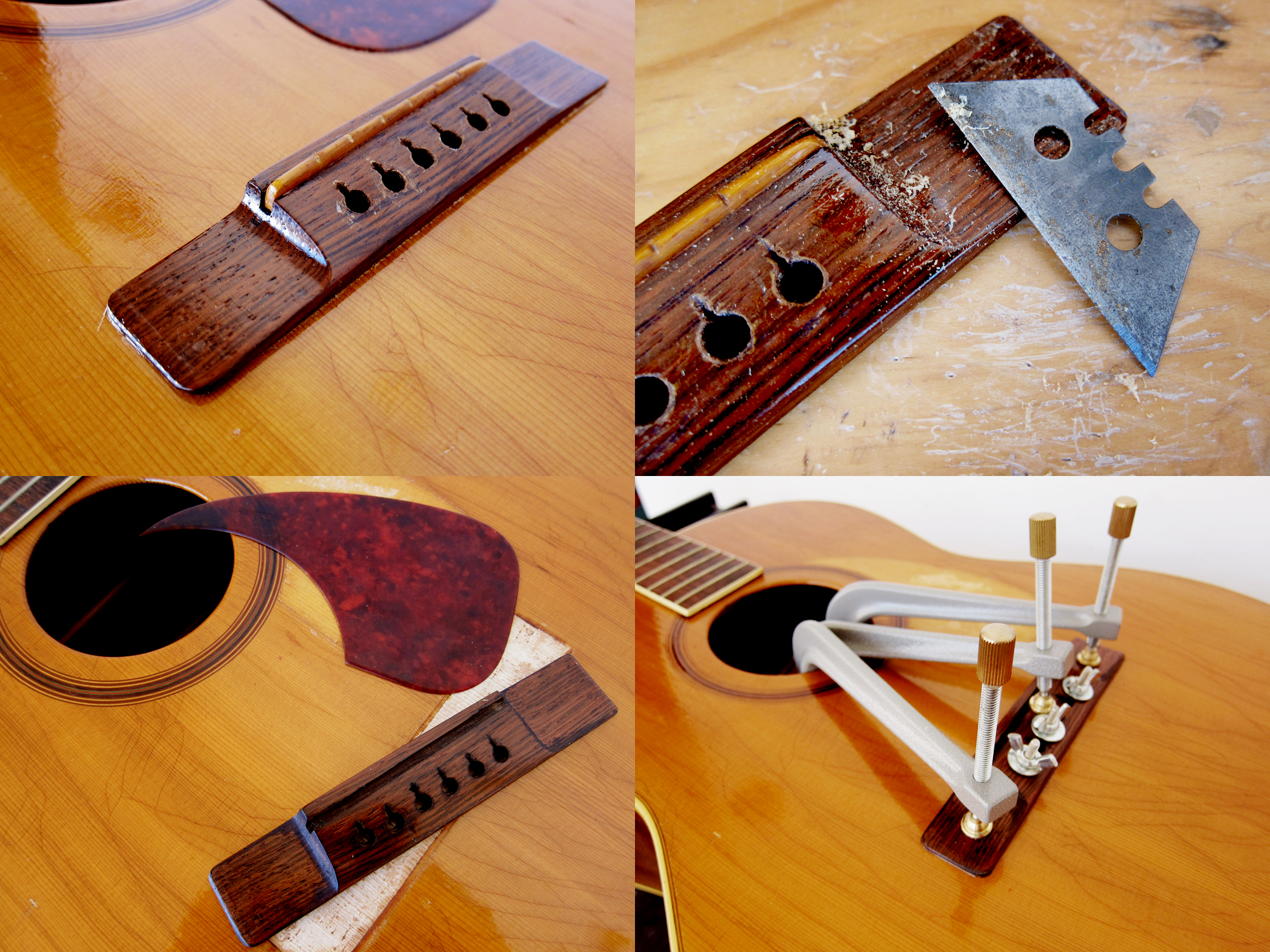

Goya T-16, made in Sweden by Levin in 1966I removed the bridge and pickguard, scraped of the lacquer and then re-glued them. I also adjusted the neck angle by removing the bolts inside and then sanded down the heel a bit with a sandpaper, just like I did on the old Goya T-16.

Goya T-16, made in Sweden by Levin in 1966The headstock had some fine cracks that I filled with fish glue and then polished up. I cut a new bone saddle that I painted to match the old Levin Galalith saddle and then I cleaned up the fretboard and polished the frets.

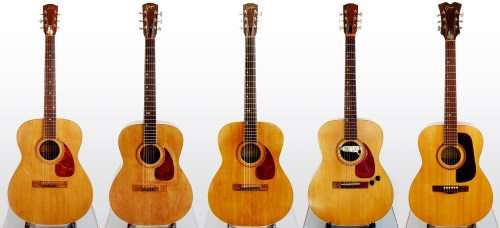

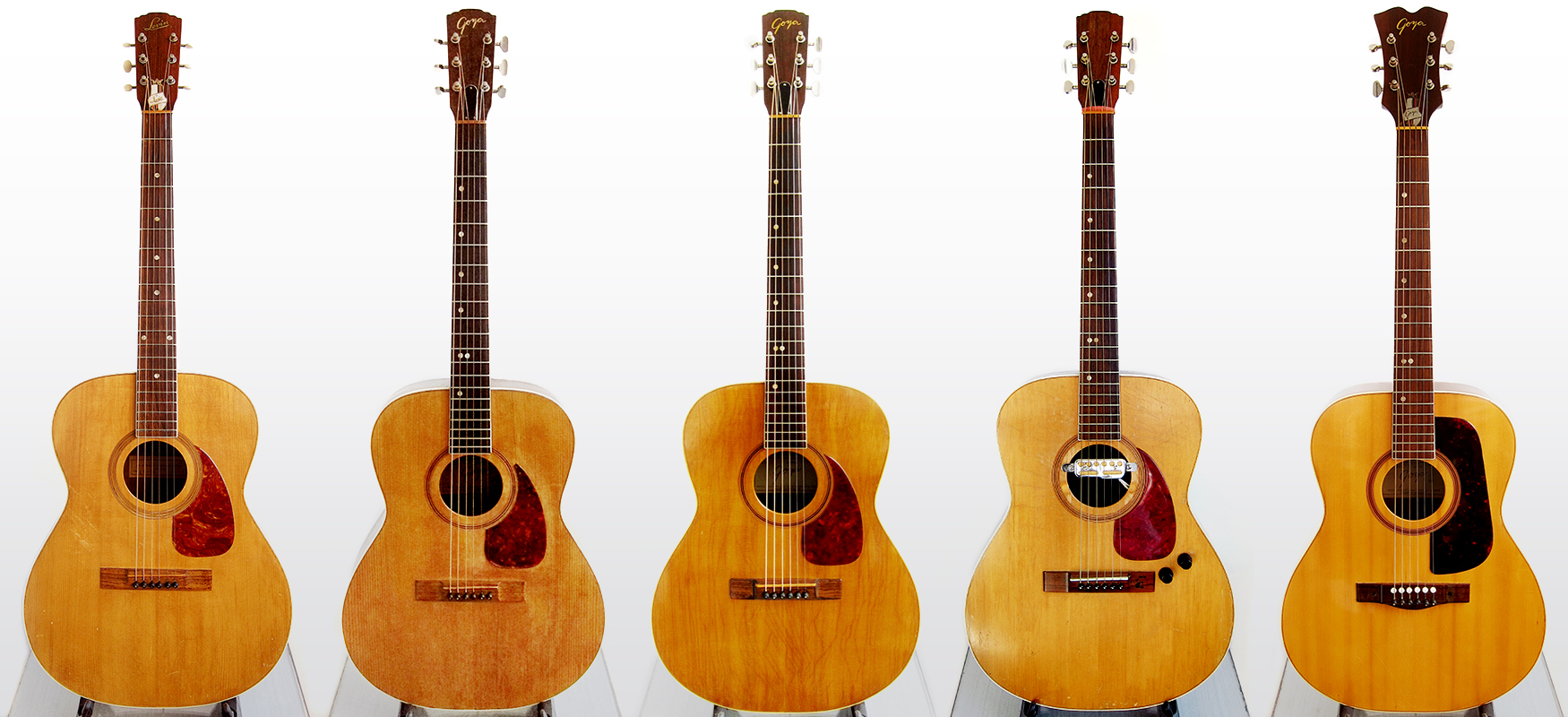

Goya T-16, made in Sweden by Levin in 1966My collection of 000-sized Levin guitars so far, from left to right: Levin LS-16 (1963), Goya T-16 (1965), Goya T-16 (1966), Levin LT-16 (1966), Goya GG-172 (1970)



Old Levin Parlour

Old Levin Parlour, 1907 Levin catalogTaken from a 1907 Levin catalogue, thanks to Vintage Guitars Sweden

I have been trying to find a 100-years old Levin parlour for some time now, something built before 1920 and with a pin bridge. If anyone has one that they would like to sell then please get in touch, claesgellerbrink@gmail.com. I would also be interested in any guitar that came out of the greater Chicago area built by Swedish builders, like an Ideal by August Carlstedt or a Maurer or a Prairie State built by the Larson Brothers, if I could afford it. It doesn’t really matter if the guitar is playable or not.



Happy New Year!

It’s been a great year for the Levin collection. Let’s hope that 2016 will be even better. Happy New Year everyone!

Levin CollectionLevin LT-14 (1965), Levin Goya T-16 (1965), Levin Goya T-18 (1966), Levin Goya T-23 (1966), Levin Rondo Model 29 (1960), Levin LT-16 (1966), Levin LS-16 (1963), Levin LM-26 (1959), Levin Model 65 (1942), Levin Model 13 Ambassadör (1950), Levin Model 32 (1946), Levin Model 3 Royal (1951), Levin W 12-36 (1978), Levin Goya Model GG-172 (1970), Levin Goya Model 163 (1968), Levin Model 174 (1972)

Levin LS-16

Levin LS-16 Made in Sweden 1963Levin LS-16 Made in Sweden in 1963

I was offered to buy a 1963 Levin LS-16 from a Swedish collector just before Christmas last year. Of course I jumped on the chance, not only is it a really rare bird, most of them were branded Goya S-16 and sent off to the US, but I had also been looking for another guitar like my dad’s old 1966 Levin LT-16 for quite a while. Unfortunately this Levin LS-16 got stuck in Sweden for a year, my mum didn’t want to send it so I couldn’t bring it back to Spain until I went back home for a funeral now in November. In the time of it’s absence I managed to find and restore a really nice sounding 1965 Goya T-16  so now I suddenly have 3 Grand Concert sized Levin guitars from the mid-60’s. Not that I complain, I really like both the sound and the playability of these guitars and this last one is probably the best sounding of all of them. According to Vintage Guitars Sweden, the most resourceful site about Levin guitars, the main difference between the Levin LS-16 and Levin LT-16 is the bracing pattern. The LS is supposed to be ladder braced but mine is X-braced just like the LT-series, I think that became standard in the early 1960’s. They also have different machine heads, dot inlays in the fretboard and I think that the LS-series have a bit more V-shaped neck profile.

Levin LS-16 Made in Sweden 1963Levin LS-16 Made in Sweden 1963

Levin LS-16 / Goya S-16
Grand Concert size: Body width: 380 mm, body length: 480 mm, body depth: 98 mm. Fingerboard width: 43 mm, scale length: 630 mm. Spruce top, mahogany back and sides, 4-ply bound top, single-bound back. Mahogany bolt-on neck with adjustable truss rod. Metal Levin truss rod cover with a star and “1900”. Single-bound rosewood fingerboard with centered pearl dot inlay. Rosewood bridge, nickel plated strip tuners. Natural finish and ten year warranty



Goya T-16

Levin Goya T-16 Made in Sweden 1965Goya T-16, made in Sweden by Levin in 1965

I finally managed to get another Levin LT-16, just like my dad’s old guitar that I learned to play on as a kid. His is a 1966 Levin branded one and this one is from 1965 and has the Goya logo on the head stock. These guitars normally don’t come up for sale that often, I guess because they are really well sounding and perhaps the 000-size is very sought after too. It took two years but finally I managed to get my hands on one, in bad shape when it arrived but now fully playable again.

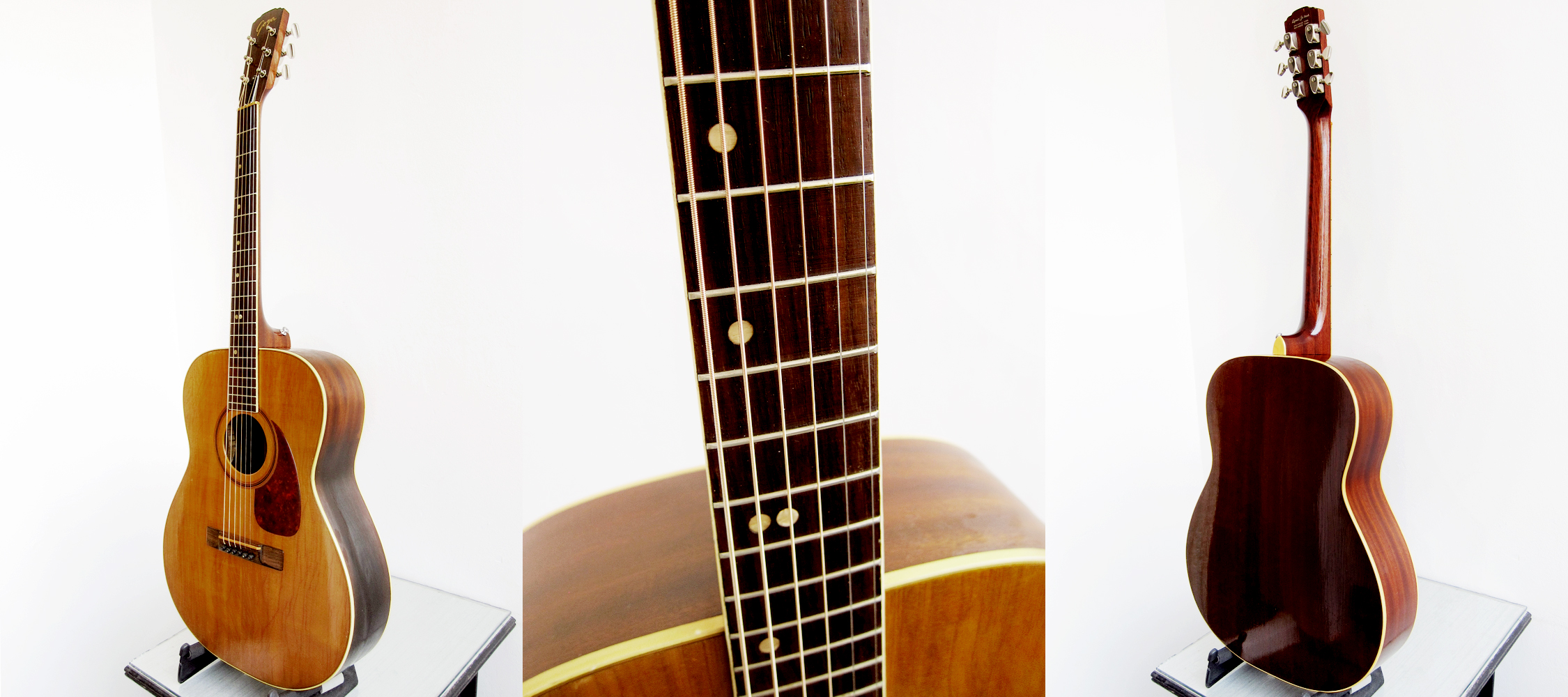

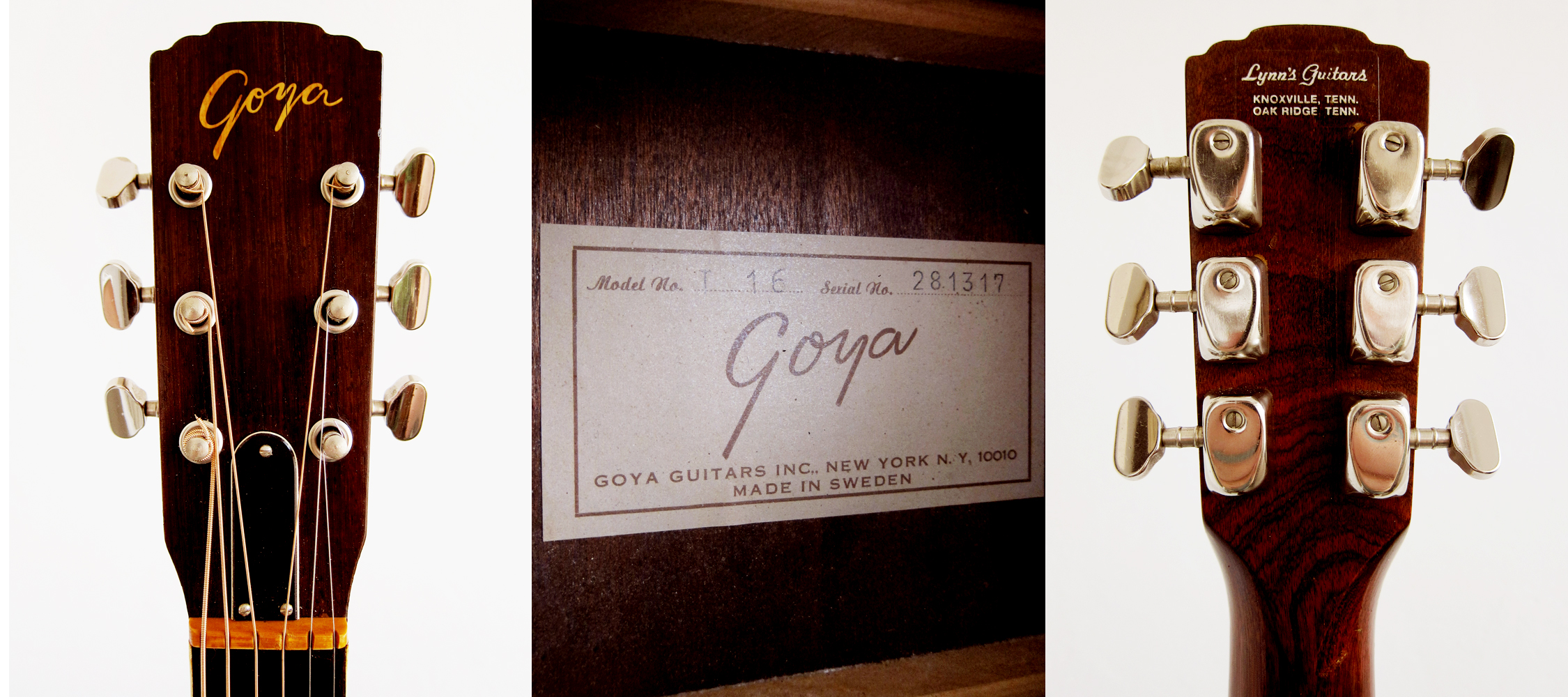

Levin Goya T-16 Made in Sweden 1965Levin Goya T-16 Made in Sweden 1965Levin Goya T-16 Made in Sweden 1965

Levin LT-16 / Goya T-16
Grand Concert size: Body width: 380 mm, body length: 480 mm, body depth: 98 mm. Fingerboard width: 43 mm, scale length: 630 mm. Spruce top, mahogany back and sides, 4-ply bound top, single-bound back. Mahogany bolt-on neck with adjustable truss rod. Single-bound rosewood fingerboard with bass side pearloid dot inlay. Rosewood bridge, nickel plated individual Van Gent tuners with metal buttons. Matte natural finish and ten year warranty

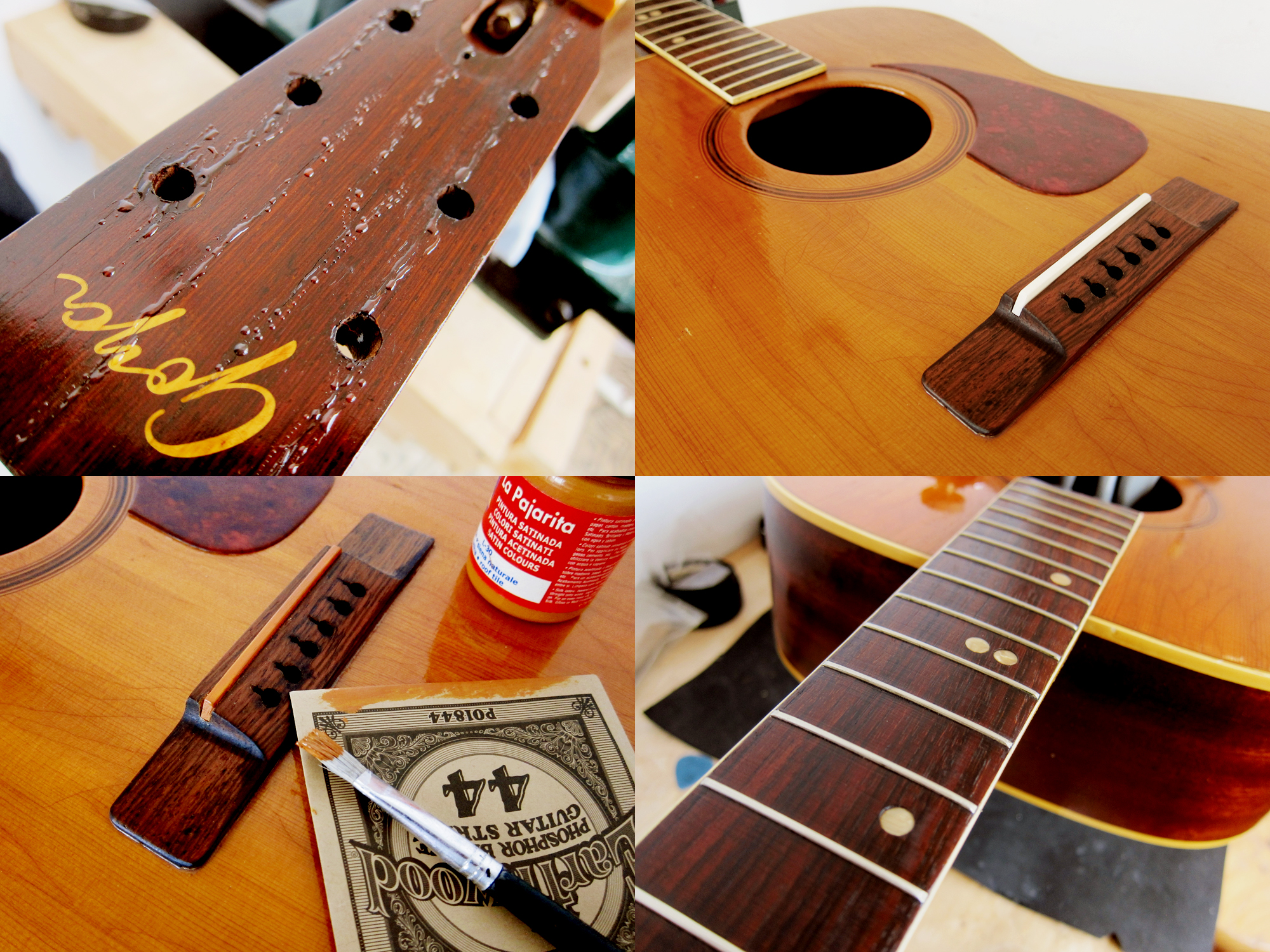

Levin Goya T-16 Made in Sweden 1965There was quite a lot of work on this one. First I re-hydrated the guitar for a week, just a wet sock in a bowl inside, which made the cracks close up quite a lot. I removed the bridge and the pickguard and glued all the cracks on the top and reattached the back that was coming loose. I also flattened the top, it had a bit of a belly that I managed to get down with a flat piece of wood covering the top that I clamped down for a couple of days.

Levin Goya T-16 Made in Sweden 1965I re-glued the bridge and replaced the 10 cm of missing binding. Someone had also sanded down the neck, which I hate, so lacquered it with a couple of coats of Nitro and sanded it smooth.

Levin Goya T-16 Made in Sweden 1965Levin guitars normally lack side dots for the 9th and 12th fret, which always confuse me while playing, so I added 3 dots. I reattached the pickguard and cleaned up the original Van Gent machine heads. Levin uses a rather clever bolt-on neck system which makes neck-resets very easy. You just loosen the two bolts inside and then you can sand down the heel, it takes time but it was easier than removing the whole neck.
