Levin Model 3

Levin Model 3 Parlour Made in Sweden 1914

In the year of our Lord 1914 a terrible war broke out in Europe, at the same time this beautiful guitar was made in Sweden. I finally found myself an old Levin parlour, a 1914 Levin Model 3. When I sold the Levin Model 65 back in December I promised myself to find another Levin parlour, but older, and nicer. I did, it took 10 days. I was super lucky and managed to win this Model 3 on an auction the day before Christmas, perhaps that’s why the competition wasn’t so fierce. It’s in pretty decent original shape for being 103 years old, no real damage to it. It looks like the back has been removed and glued back at some point so I guess someone has re-glued some lose braces. I can’t see any signs of a neck reset but since it’s so playable after 100 years I assume that someone has done that too. I love the original machine heads with their bone buttons and the brass medallion on the back of the head is just beautiful. It sounds way better than I expected. I’ve had a couple of early German parlours at home and they have sound very thin, weak and boxy somehow. This Levin is loud, clear and warm at the same time, even though it’s ladder braced. For being one of Levin’s cheapest models I think it’s an amazing guitar and it looks stunning in it’s simplicity.

The back and sides are made of birch that is painted to look like Brazilian rosewood. I would have preferred the real deal but I guess it was both expensive and hard to come by exotic woods at the time.

Levin Model 3
Body width: 315 mm, length: 460 mm, depth: 78 mm
Spruce top with ladder bracing, birch back and sides
Unbound walnut fingerboard with mother-of-pearl dot inlay
Triple wood bound top, unbound back and headstock
Brass frets, brass tuners, pyramid bridge, bridge pins and strap button with mother-of-pearl inlay. Rosewood finished back and sides with an orange finished top.

Introduced circa 1900

The stamp on the right side is from Frälsningsarmén, The Salvation Army in Stockholm. I assume a lot of songs about Jesus has been played on this guitar over the years.

The old Levin factory on Norra Larmgatan 4 in Gothenburg, Sweden, around 1920. Taken from Vintage Guitars Sweden

6 Comments

January 19, 2017

Martin SWDGT

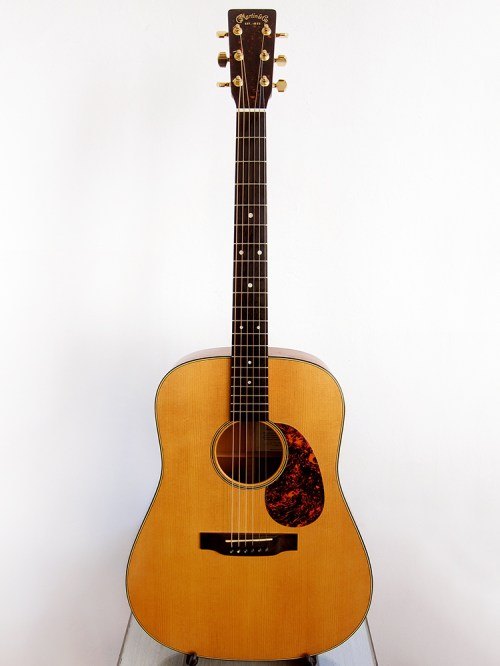

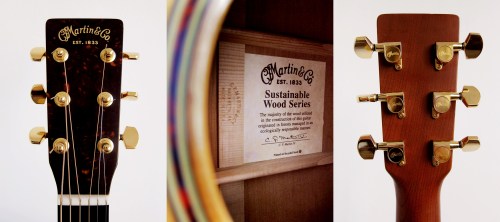

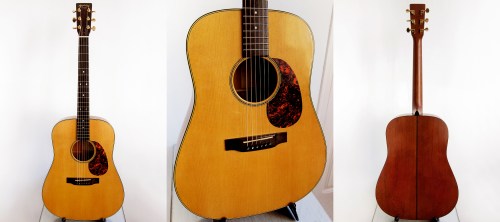

Martin SWDGT, Made in USA 2004

Last weekend I adjusted Sr. Chinarro’s 2004 Martin SWDGT. It’s a really nice guitar and it reminds me a lot of the Martin SPD-16R I got for Christmas. These Martin SWDGT or Sustainable Wood Series are constructed in an ecologically responsible way with alternative woods. It has a really nice coloured sitka spruce top with non-scalloped X-bracing, back, sides and neck are cherry wood and the fretboard is made from katalox. It’s constructed with a simple dovetail neck joint, gold machine heads and a faux tortoise binding all around, just like the Martin SPD-16R, the only difference is that the SWDGT has faux tortoise headplate as well. The Martin SPD-16R has rosewood back and sides and it feels like the cherry wood in the SWDGT is adding more bass, depth and warmth, I really like the sound of it. I’ve always been a big fan of fancy exotic woods, especially Brazilian rosewood, but if you can build guitars this good from woods you can find in your backyard, then perhaps that’s the sustainable way for the future. I have to add that I hate the future and prefer to live in the past with my fancy old exotic woods but we can’t all do that, that wouldn’t be very sustainable.

I love the colour of the top, so much nicer than the new made Martin D-18 and D-28.

January 12, 2017

Levin LS-18

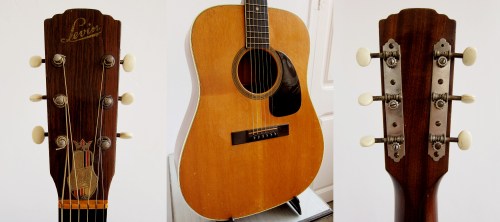

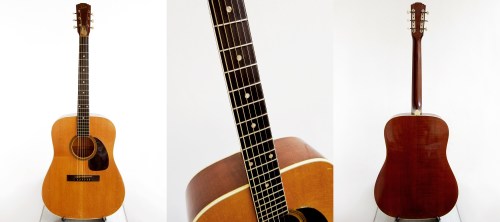

Levin LS-18 Made in Sweden 1960

I finally got my hands on a Levin LS-18. Around Christmas 2015 I was offered to buy a Levin LS-16 that I’ve loved since the first time I played it. Therefore I’ve been really curious to hear what a full sized LS sounded like. These guitars seems to be fairly rare, I’ve seen one or two up on eBay in the last year but they have both gone for upwards of a £1000. I’m not sure why there aren’t more of these around in Europe, perhaps people refuse to sell them or they all got badged like Goya S-18 and shipped off to USA. The Levin LS-18 was introduced in 1958 and replaced by the LT-18 in 1964. The only difference sound vice that I’ve noticed between the LS-18 and the LT-18, both of them have flamed maple back and sides, is that the LS-18 seems a bit deeper in the bass. Perhaps it’s just this guitar, or the year, or the wood, it’s impossible to know without trying ten others. Other noticeable differences is that the LS-18 has thicker neck profile, different machine heads and centred pearl dot inlay instead of the LT-18’s bass side pearloid block inlay. It basically looks a bit more 1950’s and I love it.

There was quite a lot of work to do on this when I first got it. The action was so high that I couldn’t even get it in tune properly, the intonation was way off. I reset the neck and cleaned it up and now it both sounds and plays great.

Levin LS-18 / Goya S-18
Goliath size: Body width: 400 mm, body length: 505 mm, body depth: 95/120 mm
Fingerboard width: 43 mm, scale length: 630 mm
Spruce top, flame maple back and sides, 4-ply bound top, single-bound back
Mahogany bolt-on neck with adjustable truss rod
Single-bound ebony fingerboard with with centred pearl dot inlay. Nickel plated strip tuners with plastic buttons. Ebony bridge, metal Levin truss rod cover, natural finish and ten year warranty

Marketed by U.K. distributors as Super Goliath Model 1855

8 Comments

January 2, 2017

Martin SPD-16R

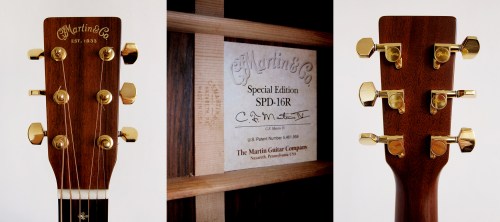

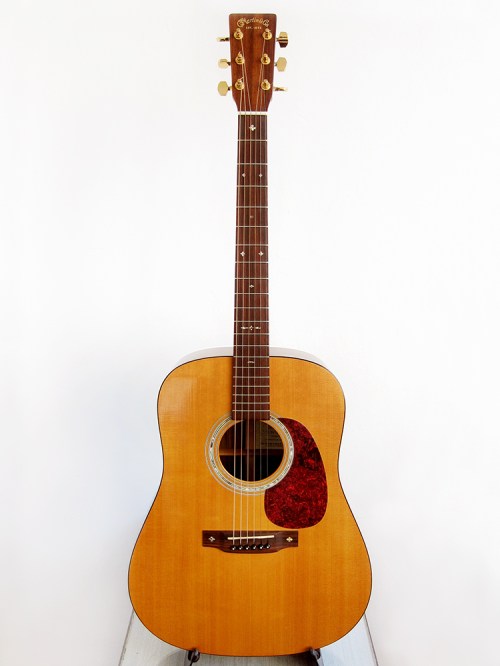

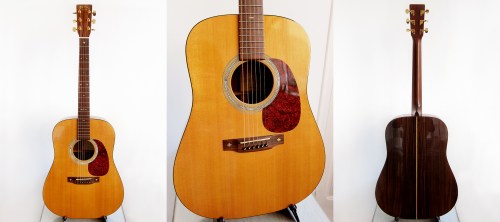

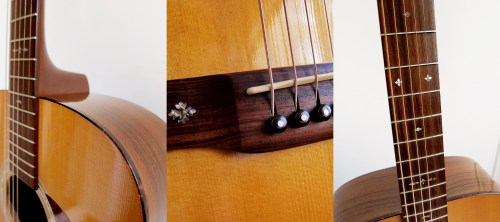

Martin SPD-16R, Made in USA 1999

Before Christmas I got myself my first Martin. Like most acoustic guitar players I’ve always dreamt of getting a really old Martin D-28 but since they are so ridiculously expensive I settled for a more modest Martin, a 1999 Martin SPD-16R. I have to say that it’s an amazing guitar for the price, I think these cost between $1500-2000 when they were new in the late 1990’s. One of the problems I have with modern Martin guitars is the Richlite and other weird wood substitutes they use on the Martin 16-series nowadays. I also think that most new Martins look pretty bland and boring, hence why I liked the SPD-16R so much with it’s fancy snowflake inlays and abalone rosette, it even has gold hardware. Unfortunately for me, I’ve realised that I’m not a Martin guy, I feel like I’m cheating on my Levin guitars every time I pick another guitar up so I’ve decided to put this Martin SPD-16R up for sale.

Martin SPD-16R
14 fret Dreadnought with spruce top and Indian Rosewood back and sides. Forward shifted scalloped X bracing. Performance taper, low oval mahogany neck with rosewood fretboard and bridge. Snowflake inlays, abalone rosette and a D-45 style back strip with gold Martin stamped machine heads. Produced in USA between 1996-2001. SPD-16R stands for Special edition, Dreadnought, 16-series in Rosewood.

Player Reviews, taken from Dream Guitars:

“The SPD-16 series offers a lot of guitar for the money. Solid woods, abalone markers and rosette and gold hardward were all standard. Great tone is standard also. This is a true Martin guitar with the punch and wonderful midrange Martin fans will enjoy.” – Paul Heumiller

“This is a great dreadnought for the money. This Special Edition Martin has that vintage look and appears to be a cross between a D-18 and D-28. Pretty darn nice.” – Al Petteway
