Goya 163

by claesgellerbrink

Goya Model 163 Made in Sweden 1968
A very early Goya Model 163, they were introduced in 1969 but the serial number puts this one to 1968. That would make it the earliest known example on the Vintage Guitars Sweden site. Levin serial numbers / Goya serial numbers

I thought I might as well post some images of the Goya 163 I received back in January. There was some work to be done, actually quite a lot. First I had to reset the neck to get the action down and then I had to remove the bridge and redo the saddle screws. I cut a new pickguard over the weekend, well it’s not perfect yet, I’m still looking for a better material but it will do for now. I bought this Goya from a girl called Marilyn Moser in Maynard, Massachusetts. She had used the guitar for some live gigs in the New York area but gave up on it because of the high action, it was fairly unplayable when I got it. The guitar came with a nice handwritten note to me, the new owner, that’s why I got curious to find out a bit more about her. Here are links to some of her music and her awesome 1960’s blog.

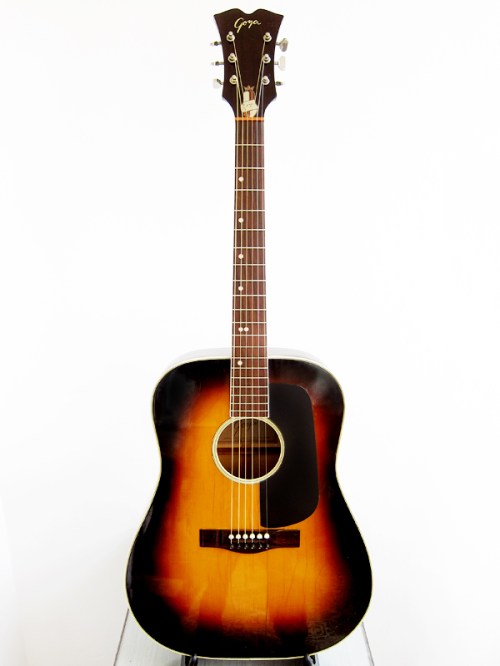

Goya Model 163 Made in Sweden 1968
Goya Model 163, made in Sweden by Levin in 1968

Levin 163 / Goya 163
Goliath size: Body width: 400 mm, body length: 505 mm, body depth: 95/120 mm
Fingerboard width: 43 mm, scale length: 630 mm
Spruce top, flame maple back and sides, 4-ply bound top, single-bound back
Mahogany bolt-on neck with adjustable truss rod
Single-bound rosewood fingerboard with bass side pearloid dot inlay
Rosewood bridge with individual height adjustable plastic saddles
Nickel plated individual Van Gent tuners with metal buttons
Sunburst finish and ten year warranty

Goya Model 163 Made in Sweden 1968

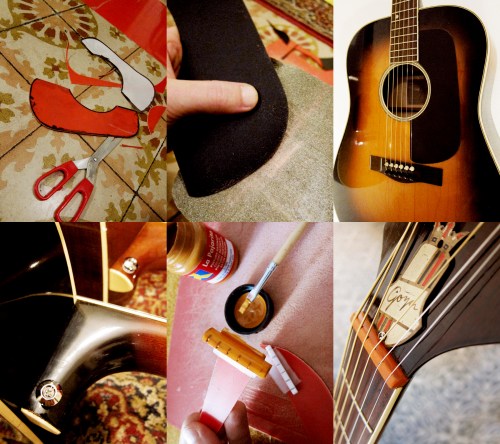

I still haven’t found a good pickguard material. Well the red plastic that I happened to find in the street is actually perfect but who wants a red pickguard. I’ve managed to find 0.8 mm thick matt black plastic but I need something around 1-1.5 mm and preferable in high gloss jet black or even better in red tortoise.  I fitted a strap button in the usual place, and then I painted the new bone nut orange to match the original Levin Galalith nut.

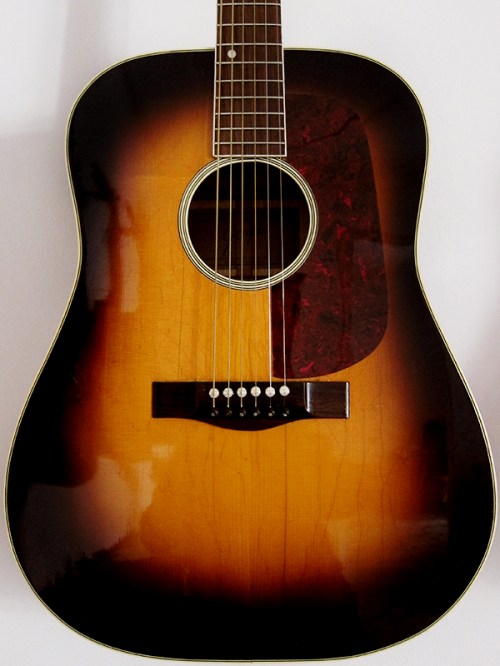

Levin Goya Model 163 1968
Update: March 21, 2014 The pickguard material I ordered from China looked a lot classier than expected so I cut in to shape and put it on
