Claescaster

Tag: Claes Collection

May 28, 2018

Levin W-30

Levin W-30 Made in Sweden 1979
Levin W-30, Made in Sweden in 1979

Sometimes I feel like a recovering Levin-oholic who keeps falling off the wagon time after time. I promised myself, and my wife to stop buying Levin guitars but just seems to be unable to. I recently found this beautiful and very unique Levin W-30 in Sweden that I couldn’t resist and had to buy. Now I’ve realised that I probably shouldn’t have. I’m running out of wall space for guitars and I could do with the money for other more pressing family related things, apparently guitars is not a high priority in the joint family account. Therefore I’ve decided to put it up for sale. I believe this guitar to be a rare one off, most likely built by one of the Levin builders for himself and outside of the normal production. They stopped making the Levin W-30 in 1975 so that’s the first sign that this is a unique one. The previous owner bought a lot of parts, material and finished guitars when the Levin factory closed down in 1979, well actually an old man called Friis did, who had a music shop in the north of Sweden and when he died and closed his shop the previous owner bought parts of his left-over Levin stock and this guitar was one of them. He claims that it was built in 1979, otherwise it wouldn’t have been around when the factory closed, which makes perfect sense. The original Levin W-30 came with block inlays while this has beautiful snowflake inlays in the bound ebony fingerboard instead. The alpine spruce top and the rosewood back and sides are bound with a five layer wood binding which looks really classy. It’s also treated with a thin layer of lacquer instead of the heavy clear coat that the mid 1970’s Levin W-30 came with. That gives a really open and beautiful sound, very Martin like. The guitar is in very good state but has some small marks around the body. The neck is in perfect condition and so is the frets. The spruce top has had a dry crack professionally repaired, these type of cracks are very common on Levin guitars because of the dry winters in Sweden. The guitar is equipped with an under saddle pickup and ready to play with live. This is a unique 40 years old hand built Swedish guitar for a third of what a vintage Martin would cost.

Levin W-30 Made in Sweden 1979 Levin W-30 Made in Sweden 1979

Levin W-30
Goliath size: Body width: 400 mm, body length: 505 mm, body depth: 95/120 mm
Fingerboard width: 43 mm, scale length: 630 mm
Spruce top with 5-ply bound wood binding and 4-ply bound three-piece rosewood back. Mahogany neck with adjustable truss rod. Bound ebony fingerboard with snowflake inlays. Bone nut and saddle. Nickel plated individual Levin stamped tuners. Ebony bridge, natural finish and ten year warranty

1 Comment
December 14, 2017

1978 Fender Telecaster

Fender Telecaster Made in USA, Fullerton 1978Fender Telecaster, Made in USA at the Fullerton plant in 1978-79

Earlier this year I decided to buy a late 1970’s Fender Telecaster but ended up with three identical 1978-79 Fender Telecasters. The first 1978 Fender Telecaster was bought from a music store in Italy and served me really well during the summer but then I found this 1978-79 Fender Telecaster from Andy’s Really Great Guitars in Worcestershire, UK that I just couldn’t resist. I should of course have stopped there but stumbled upon a third 1979 Fender Telecaster from a record store in Southport, UK which I bought but now have sold. I’m planning to keep this 1978-79 Fender Telecaster since it’s lighter, 3.8 kg instead of 4.3-4.5 kg, the grain is amazing and most importantly it sounds awesome. It has a really nice full neck profile and I guess this is the Nancy I’ve always dreamt of. Well done me.

Fender Telecaster Made in USA, Fullerton 1978 Fender Telecaster Made in USA, Fullerton 1978

It’s always a bit disappointing to take a late 1970’s Fender apart since you realise that the headstock shows one year and all the other parts another. In this case the headstock and body sticker says 1978, #S840573, the pots say mid-May 1979, #1377920 and the neck stamp shows 17th of August 1979, #3395. Well done Fender, well done.

Neck stamps: MMNN*WWYD, Example: 0900*3893 = Week 38, 1979, Day 3
Neck / Body Stamps: WWYD, Example: 0304 = Week 3, 1980, Day 4
Pot codes: MMMYYWW, Example: 1377731 = 137 (CTS), 1977, Week 31
Pickup Codes: OOWWYY, Example: 202378 = Operator #20, Week 23, 1978Taken from Dating Late 1970’s Fender Stratocasters

Fender Telecaster Made in USA, Fullerton 1978A Fullerton built Fender Telecaster from 1978-79. Body and headstock shows 1978, pots and neck stamp shows mid-1979.

3 original Fender Telecaster Made in USA, Fullerton 1978-79The three late 1970’s Fender Telecasters together, 1978 Fender Telecaster, 1978-79 Fender Telecaster and the now sold 1979 Fender Telecaster

Leave a comment
October 20, 2017

1979 Fender Telecaster

Fender Telecaster Made in USA, Fullerton 1979Fender Telecaster, Made in USA at the Fullerton plant on the 4th of July 1979

As usual when it comes to me and guitars I never just buy one, well I do at first but then I always end up with two or three in the end. Since I really liked my 1978 Fender Telecaster I started to search for others and ended up with three different 1978 Fender Telecaster. Now after serious consideration, and  moving house and realising that I don’t have as much guitar storing space as before, I’ve decided to sell two of them. It was great in a way to get to explore three identical guitars from the same year, to compare the sound, build and feel of them and to learn more about late 1970’s Fender Telecasters. This one is great, it has a few battle scars and the frets are a bit low but that just builds character. All three of these Telecasters have a pretty chunky neck, something I love. They are around 23-24 mm on the first fret and about 24-25 mm on the 12th, not bad for a Telecaster. Unfortunately they weigh like a Les Paul, around 4-4.5 kg, perhaps that’s where the great twang and sustain comes from. As soon as I get the new flat in order I will make some videos of all three to compare them. This guitar is now for sale.

Fender Telecaster Made in USA, Fullerton 1979
Fender Telecaster Made in USA, Fullerton 1979I took this guitar apart and checked all the numbers and this one was made in 1979 even though the S8 headstock serial indicates 1978. The neck stamp says #2794 which means week 27, 1979, day 4, that was Thursday the 4th of July 1979. Here are the basic numbers to check:

Neck stamps: MMNN*WWYD, Example: 0900*3893 = Week 38, 1979, Day 3
Neck / Body Stamps: WWYD, Example: 0304 = Week 3, 1980, Day 4
Pot codes: MMMYYWW, Example: 1377731 = 137 (CTS), 1977, Week 31
Pickup Codes: OOWWYY, Example: 202378 = Operator #20, Week 23, 1978

The colour codes I mentioned in my previous post might just have been for Stratocasters because these Telecasters are stamped with a large A, which I assume means nice good looking grain for a natural see through top.

Fender Telecaster Made in USA, Fullerton 1979I filled all the dents on the back of the neck with Nitro lacquer so now you can’t feel them when you play. The volume pot has been changed at some point and the knobs are not the same as on the other two S8 Telecasters. The frets are quite low and I need to replace the first five since they are pretty worn but she plays fine as it is. Except for that, it’s all original and sounds amazing. If I had space for them, I would have kept all three.

1 Comment
June 16, 2017

1978 Fender Telecaster

Fender Telecaster Made in USA, Fullerton 1978
Fender Telecaster, Made in USA at the Fullerton plant in 1978

I sold my 1979 Fender Stratocaster a couple of weeks ago and managed to find myself a late 1970’s Fender Telecaster at the same time. This was my secret plan all along, sell the Stratocaster and get a Telecaster instead. I’ve dreamt of a 1970’s Fender Telecaster for over 20 years and now I finally got one. Ideally I would have loved an early 50’s one but I realised already at 15 years old that a late 70’s is probably all I could ever afford. I found this 1978 Fender Telecaster in Musicarte Strumenti Musicali, a guitar shop in Chiaravalle, Italy. I got a pretty descent price but you never really know what you are getting, unless you have seen all the numbers stamped on the guitar you are just taking someone’s word for it to be all original. I’ve also never bought anything from Italy, a lot of eBay sellers refuse to ship to Italy because of problems with the post and perhaps even more, Italian buyers. I just had to trust these guys and luckily it worked out fine. I really love this guitar, the neck is chunkier than the 1979 Fender Stratocaster which I love, the fatter the better. The colour will hopefully darken over the years from the sun which will make it even more Bruce Springsteen and Roy Buchannan looking. Actually, I guess this is my Nancy now, even if she is a late 1970’s natural Telecaster and not an early 1950’s butterscotch one like Buchannan’s. It weighs a good 4.3 kg but is so worth it for the feel of the neck and the sustain of the body. The pickups are pretty damn good too, I really like how sweet it sounds. Overall, an amazing Telecaster and a dream come true for me, even though my Japan made 1981 Greco TL-800 is almost as good. This guitar is now for sale.

Fender Telecaster Made in USA, Fullerton 1978
Fender Telecaster Made in USA, Fullerton 1978
Fender Telecaster Made in USA, Fullerton 1978

I haven’t taken the guitar apart yet to check that all the numbers match the serial number. I managed to date my 1979 Fender Stratocaster via this site, Dating Late 1970’s Fender Stratocasters, I found it extremely helpful. Since the S7, S8, S9 etc stamped on the headstock are so inaccurate to show if the guitar was made in 1977, 1978 or 1979 you really need check all the other numbers to know what year the guitar was made. Here are the basic numbers to check:

Neck stamps: MMNN*WWYD, Example: 0900*3893 = Week 38, 1979, Day 3
Neck / Body Stamps: WWYD, Example: 0304 = Week 3, 1980, Day 4
Pot codes: MMMYYWW, Example: 1377731 = 137 (CTS), 1977, Week 31
Pickup Codes: OOWWYY, Example: 202378 = Operator #20, Week 23, 1978

Here are the colour that were available in the late 1970’s, I have to try to find #521 stamped on mine to make sure that it was originally natural colour and hasn’t been stripped. Antigua (523*), Black (506*), Blond (501), Natural (521*), Sunburst (500), Tobacco Sunburst (525*), Walnut (522), White (505*), Wine (524*)

I used the 1978 Fender Telecaster for the first time last weekend at our gig at the AMCCC – American Cars 2017 in Platja d’Aro, Girona.

2 Comments
January 20, 2016

ARTEC MHFC93

Levin Model 32 Made in Sweden 1946, Artec MHFC93-CRLevin Model 32 made in Sweden by Levin in 1946

I’ve finally received my Artec MHFC93-CR from EY Guitar, the order got lost and took 3 months to arrive. Last weekend I got around to install it on my 1946 Levin Model 32 and I’m pretty impressed with how good it sounds for being so inexpensive.

Levin Model 32 Made in Sweden 1946, Artec MHFC93-CRUnfortunately I had to remove the pickguard, well it was actually quite annoying and always in the way when I played so it was more of an aesthetic loss. I also installed an old vintage strap button while I fitted the pickup so now the guitar is ready to be gigged.

Levin Model 32 Made in Sweden 1946, Artec MHFC93-CRThe installation was pretty straight forward in the end but it took a bit of figuring things out so I completely forgot to take more pictures. First I made a small hole under the fretboard extension on the right side, where the cable from the pickup could enter the body without being visible. Then I drilled a hole for the endpin jack, just like a do when I install the endpin jacks for my LR Baggs, with a 1/2 inch or 13 mm flat spade drill bit straight through the end block. I measured two cables from the endpin to the f hole, fished them up before I cut them and then soldered them to the endpin while taped to the top for not disappearing inside. Once the cable from the pickup was fished up I checked which was which and then soldered them together and stuck them to the top on the inside with a little clip on the bottom side of the f hole so they can’t be seen.

Artec MHFC93-CRArtec is perhaps not the worlds fanciest brand, especially not if you judge them by their website, but I like them and they sound very good for being so cheap.

I will get a video up as soon as possible

December 4, 2015

Guitars for sale

Martin SPD-16R Made in USA1999Martin SPD-16R, Made in USA 1999, 1500€ SOLD
Martin SPD-16R is a Special Edition Dreadnought from Martin guitars. Spruce top and Indian Rosewood back and sides with forward shifted scalloped X bracing. Performance taper, low oval mahogany neck with rosewood fretboard and bridge. Snowflake inlays, abalone rosette and a D-45 style back strip with gold Martin stamped machine heads. Produced in USA between 1996-2001. The guitar is in fantastic shape for being 18 years old with hardly any scratches and no fretware. The top has a hairline crack from the bridge down which has cracked the lacquer but not the wood. SPD-16R stands for Special edition, Dreadnought, 16-series in Rosewood. This guitar looks great and sounds amazing, you can read more about it here and listen to it in this Youtube clip.

Gibson J-45 ADJ 1965 Made in USAGibson J-45 adj, Made in USA 1965, 2300€ SOLD
An awesome looking Gibson J-45 ADJ, built in the Kalamazoo factory in 1965. It’s the classic round shouldered Gibson dreadnought, natural finish spruce top, mahogany back and sides, rosewood fretboard and bridge. All original except for the refinish which turned this J-45 in to a J-50. Apparently this was done in the early 1970’s when the slight separation in the tops mid seam was glued. The guitar looks really great, worn but still well preserved for being 50  years old. The sound is just amazing, it has that typical Gibson bass response that you can hear on the early records of James Taylor and Jackson Browne. I cut a new bone saddle for it but it comes with it’s original adjustable rosewood bridge. It has an endpin jack already installed so it’s ready to play live, just ad a pickup. A brand new flight case is included to protect the guitar. The action is low and there are no structural issues with this guitar, just the normal marks and scratches. You can read more about the guitar here and listen to it in this Youtube clip.

Gibson B-15 Made in USA 1969Gibson B-15, Made in USA 1969, 1200€ SOLD
This 1969 Gibson B-15 sounds and plays great and is pretty good shape for it’s age. There is a lot of scratches and wear to the top and sides but the are no cracks or structural issues. It’s all original and even comes with the Gibson made alligator chipboard case. The action is good and the frets has very little wear. The B-15 was an all solid model with a natural finished mahogany body, a mahogany stained spruce top and rosewood fretboard and bridge. Gibson referred to the B-series as student models at the time which is a bit misguiding considering what a student guitar sounds like today. These have great even tone and pretty amazing sustain for the size, a perfect little blues machine. You can read more about the guitar here and listen to it in this Youtube clip.

Harmony Monterey, Made in USA 1950's 784H1325Harmony Monterey H1325, Made in USA 1950’s, 550€ SOLD
Very cool looking US made archtop from the late 1950’s. Solid spruce top with birch back and sides, 16 1/2 in wide grand auditorium size, steel reinforced neck. This guitar is all original and even comes with the original case. There is a glued crack on the side but no other issues. It sounds great, loud and clear acoustically. You can read more about the guitar here and listen to it in this Youtube clip.

K. Yairi YW-1000 Made in Japan 1973K. Yairi YW-1000, Made in Japan 1973, 1700€ SOLD
This is the top of the line, the fanciest guitar that K. Yairi built. Their Martin D-45 copies are legendary for their sound and build quality. This guitar has real Brazilian Rosewood back and sides and a beautifully aged solid spruce top. Real abalone inlays all around and the typical Martin volute where the head and neck meet. At the moment this guitar has Wilkinson WJ28NGD open gear machine heads in gold fitted but I still have the original K. Yairi machine heads. It’s all original except for the bridge which is a brand new hand cut and shaped replacement in ebony with a bone saddle and ebony bridge pins. The guitar is in great shape for being 43 years old but there are a couple of scratches to the top, one big one close to the bottom. The neck is straight, trussrod works and the action is low. The guitar sounds amazing, so deep and clear at the same time. These K. Yairi YW-1000 are extremely rare in Europe and without any doubt the closest you can get to a real 1970’s Martin D-45. You can read more about the guitar here and listen to it in this Youtube clip.

Morris W-50 1970's Made in JapanMorris W-50, Made in Japan 1970’s, 700€ SOLD
Nice Martin D-42 copy with real abalone hexagon inlays and the typical Martin volute where the head and neck meet. Solid spruce top with nice inlays all around and a beautiful 3-piece back with flamed maple and dark rosewood. The guitar is all original and in really good shape for being over 35 years old but with some scratches, one slightly larger on the top. The neck is straight, trussrod works and the action is low. The guitar sounds great, very clear and Martin like. You can read more about the guitar here and listen to it in this Youtube clip.

Morris W-50 1970's Made in JapanMorris W-50, Made in Japan 1970’s,650€ SOLD
Great looking Martin D-42 copy with snowflake inlays and the typical Martin volute where the head and neck meet. Solid spruce top with nice inlays all around and a beautiful 3-piece back with flamed maple and dark rosewood. The guitar is all original and in really good shape for being over 35 years old but with scratches and marks around the body. It has Wilkinson WJ28NGD open gear machine heads in gold installed now but the original will be included. The neck is straight, trussrod works and the action is low. The guitar sounds great, very clear and Martin like. You can read more about the guitar here and listen to it in this Youtube clip.

Morris W-40 1973Morris W-40, Made in Japan by Terada 1973, 500€ SOLD
A pretty early Morris and a very nice looking Martin D-45 copy, made by Terada in Japan, the factory that makes Gretsch and Orville. Solid spruce top with a really nice 3-piece back of Brazilian rosewood and maple. The inlays are real abalone hexagon inlays and I still have the original machine heads if chrome is preferred to gold. It has it’s fair share of scratches and has been played a lot over the past 42 years but it has no cracks or issues. The neck is straight, trussrod works and the action is low. The sound is just amazing, really deep bass but with good clarity and great projection. It has a endpin jack fitted and a strap button so it’s ready to be gigged with straight away, just fit a pickup. It’s still one of my favourites but now I have too many Morris guitars and have to get rid of some. You can read more about the guitar here and listen to it in this Youtube clip.

Morris WL-35 Made in Japan 1970'sMorris WL-35, Made in Japan 1970’s, 400€ SOLD
A really cool looking Johnny Cash Guild copy. It’s in great condition except for one flaw, the end pin has been pushed in at one point and cracked the lacquer. It’s not as bad as it sounds and it doesn’t really affect anything but I thought it would be worth mentioning. I’m pretty sure it’s mahogany back and sides, it has a really warm and nice sound and is a great playing guitar. It has a endpin jack fitted and a strap button so it’s ready to be gigged with straight away, just fit a pickup. You can read more about the guitar here and listen to it in this Youtube clip.

K.Yairi TG-40 Made in Japan 1977K. Yairi TG-40, Made in Japan 1977, 700€ SOLD
A very rare and unique K. Yairi copy of the famous Guild D-40, which itself was introduced in the Sixties as a competitor to Gibson’s J-45. The Guild D-40 became famous as the Bluegrass guitar for their even response over all the strings and I have to say that this K. Yairi TG-40 sounds amazing. Solid spruce top, sides and back in solid mahogany, neck in Honduras mahogany, bridge and Fretboard in black ebony. The guitar is all original except for the pickguard, which was replaced with an official Guild pickguard, the old one was cracked. It has an end pin jack and strap button fitted and at the moment Wilkinson WJ-309 Art Deco machine heads in gold but I still have the original machine heads if chrome is preferred to gold. The top and back has a few scratches but no structural issues. It plays really well and has an amazing tone, very loud and clear with a great punch in the mid-range. You can read more about the guitar here and listen to it in this Youtube clip.

K. Yairi YW-130 Made in Japan 1977K. Yairi YW-130, Made in Japan 1977, 550€ SOLD
This is a quite accurate Martin D-28 copy made in Japan by K. Yairi in 1977. It’s really light and beautiful sounding, very responsive and a joy to play. Solid spruce top, rosewood back and sides with a smooth ebony fretboard. It has it’s fair share of scratches and a couple of dents to the top but no cracks or issues. The neck is straight, trussrod works and the action is low. The sound is great, very clear with great harmonics. It has a strap button fitted and at the moment Wilkinson open back machine heads in gold but I still have the original machine heads if chrome is preferred to gold. You can read more about the guitar here and listen to it in this Youtube clip.

IMG_9283Levin Model 13 Ambassadör, Made in Sweden 1950, 600€ SOLD
This is a beautiful Levin Model 13 Ambassadör, hand built in Gothenburg Sweden in 1950. If you are not familiar with this classic Swedish brand Levin, click on the link to read more about it. It was restored a few years ago by GammelGura, a great luthier in Örnsköldsvik, Sweden. With new bronze frets, a neck re-set, cracks glued and a new bridge was created to improve the intonation, the rest is all original. It even has the sticker on the back of the head from the guitar shop in Örnsköldsvik where the guitar was bought 65 years ago. It’s a fairly small ladder braced 12-fret guitar with a big sound because of the body width, 400 mm. All solid woods, as always with Levin. Spruce top, walnut back and sides, 4-ply bound top, single-bound back. Mahogany neck with non-adjustable T-shaped duraluminum truss rod. Single-bound rosewood fingerboard with 18 frets and pearloid dot inlay. Single-bound headstock, rosewood bridge, nickel plated individual tuners. Sunburst finish, very similar to the Gibson sunburst of the 1940-50’s, and 10 years warranty. You can read more about the guitar here and listen to it in this Youtube clip.

Levin Model 65 parlour guitar Made in Sweden 1942Levin Model 65, Made in Sweden in 1942, 550€ SOLD
A nice little parlour guitar from Levin, made during World War II in Gothenburg Sweden. It’s just 315 mm wide so it’s a perfect little ladder braced blues machine. All solid woods, spruce top, birch back and sides with walnut fretboard, brass machine heads and nickel plated tailpiece. The guitar is all original, I carved a new bridge for lowering the action but the original will be included in the sale. The neck is really fat and nice and feels great to play. A perfect parlour for blues picking. You can read more about the guitar here and listen to it in this Youtube clip.

Hagström Western 6 Made in Sweden 1978Hagström Western 6, Made in Sweden in 1978, 650€ SOLD
A very rare Hagström Western 6 Missouri made in 1978 by Bjärton in Bjärnum in the south of Sweden. Bjärton were the second largest guitar manufacturers in Sweden after Levin, and they produced all the acoustic instruments for Hagström. It’s both stunning to look at, a joy to play and it sounds great. It has the same head, fretboard and inlays as the legendary Hagström Suede electric guitars had in the 1970’s. Spruce top with X-bracing, mahogany back and sides. 4-ply bound top and bound back. Unbound ebony fingerboard, rosewood bridge, mahogany neck. Matte natural finish and 10 year warranty, which was only give to the top end models. You can read more about the guitar here and listen to it in this Youtube clip.

Hagström B-60 Made in Sweden 1975Hagström B-60, Made in Sweden by Bjärton in 1975, 500€ SOLD
This great looking Gibson J-50 copy was made in 1975 by Bjärton in Bjärnum in the south of Sweden. Bjärton were the second largest guitar manufacturers in Sweden after Levin, and they produced all the acoustic instruments for Hagström. It’s made out of all solid woods and it’s a very nice sounding guitar, even though it has a bolt-on neck, I guess the solid woods and massive neck block is helping with the sound. Spruce top with X-bracing, mahogany back and sides with a nice mahogany bolt-on neck, unbound rosewood fingerboard, Single-bound top and back, rosewood pin bridge. Van Gent machine heads, just like Levin, natural finish and 10 year warranty, which was only give to the top end models. You can read more about the guitar here and listen to it in this Youtube clip.

September 30, 2015

Rondo

Rondo by Levin Made in Sweden 1960Rondo, built by Levin in Gothenburg Sweden in 1960

Today is wife’s birthday so tried to be a good husband and got here an old guitar. I found her a little Rondo, a mail order guitar built by Levin in the late 1950’s. I have actually never seen one of these before so I was quite exited when it arrived. It surely feels, plays, smells and sounds like a Levin. Rondo was made by Levin for Musik AB Westin & Co, a music store and publishing company in Stockholm with a large mail order business. It looks pretty similar to a Levin 119 and was made for both steel and nylon strings, this was pretty common on smaller Levin guitars in the 1950-60’s. It’s a very nice little guitar to play and it has more volume and sounds sweeter than I expected, perhaps because it’s fan braced instead of ladder braced. My wife seemed very happy with it too when she got it this morning.

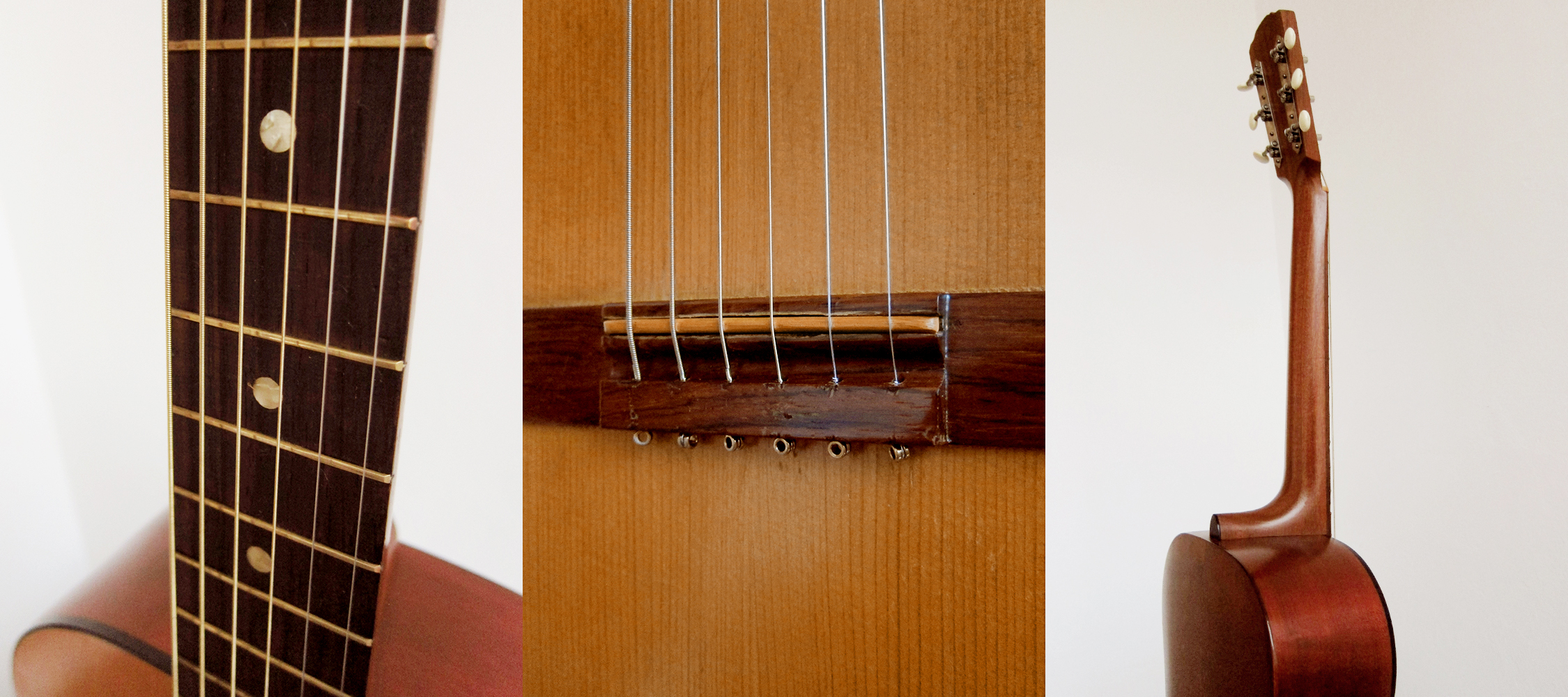

Rondo by Levin Made in Sweden 1960Rondo by Levin Made in Sweden 1960

Rondo
Non-cutaway. Body width: 320 mm, body length: 455 mm
Body depth: 95 mm, scale length: 595 mm
Spruce top, maple back and sides, fan braced
Single-bound top, unbound back, unbound headstock
Unbound rosewood fingerboard with pearl dot inlay
Mahogany neck with non-adjustable T-shaped duraluminum truss rod, rosewood bridge, stainless tuners
Natural finish, one year warranty

Rondo by Levin Made in Sweden 1960It was in pretty good shape when it arrived. I had to glue a couple of small cracks, polish the frets, oil fretboard and machine heads and give her a good clean but that was it. The only problem was that this had to be done when my wife wasn’t around so I’ve been a guitar repairing ninja for the last week.

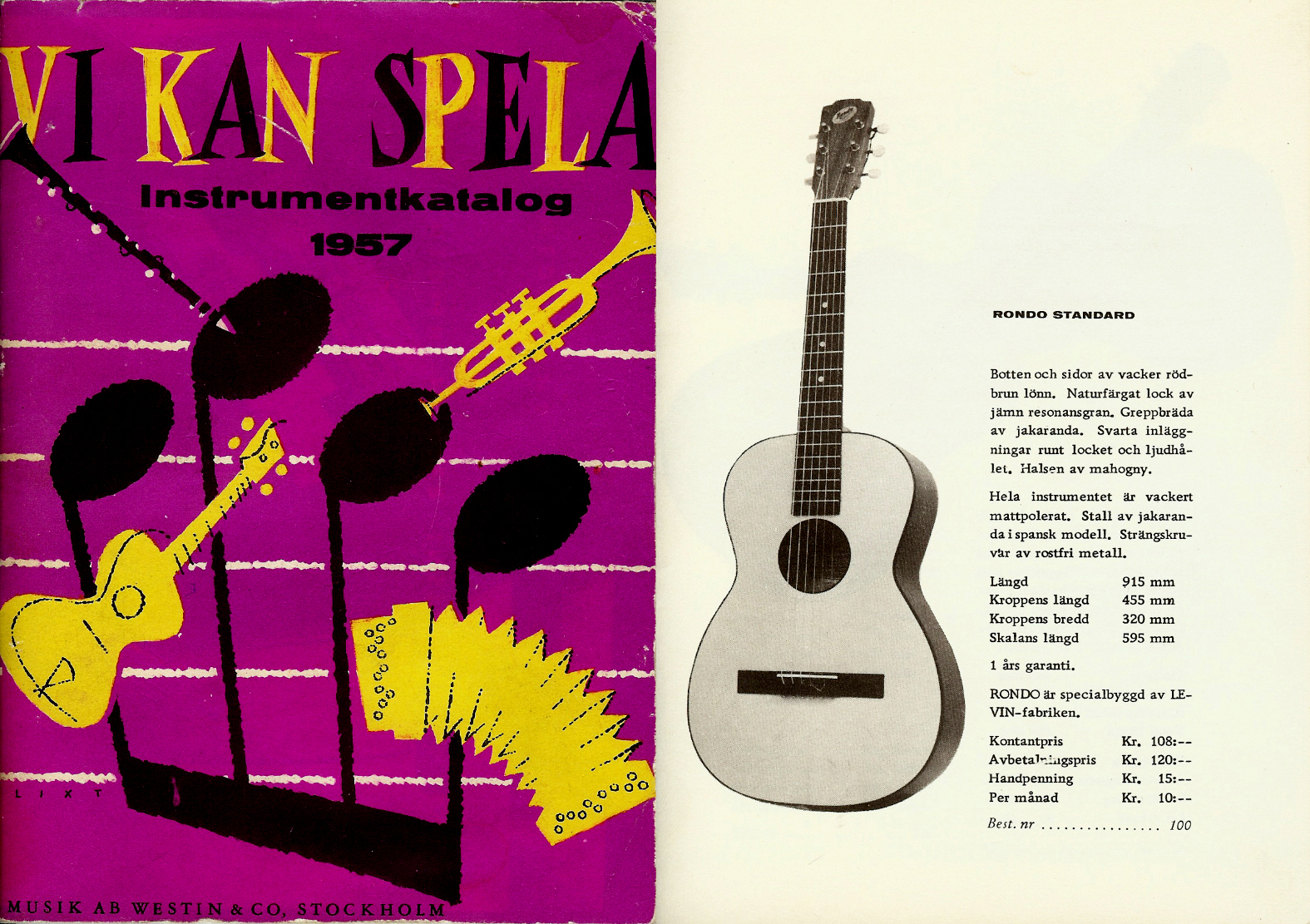

Rondo guitar, Musik AB Westin & Co 1957 catalogueThe Levin built Rondo guitar in a 1957 catalogue from Musik AB Westin & Co

May 14, 2015

Guitars for sale

Maya F335G, Dreadnought, Made in Japan, 1970’sMaya F335G, Dreadnought acoustic, Made in Japan, 1970’s, 200€ SOLD
Japan made Gibson J-50 copy in a pretty good state for it’s age. I couple of marks on the spruce top and few knocks on the head but structurally very sound without any cracks. This Maya F334G was made by Chushin Gakki in Kobe, Japan, during the 1970’s. It has a really fat neck, it’s feels great to play, adjustable bridge with both bone nut and saddle. The sound is very full with a great booming bass. If you want more pictures  you can check the post I wrote about it.

There are a couple of more guitars for sale here

March 16, 2015

Levin Model 32

Levin Model 32 Made in Sweden 1946
Levin Model 32 made in Sweden by Levin in 1946

I recently got this old 1946 Levin Model 32 from an eBay seller in Vienna. The guitar has clearly seen better days but I felt she deserved a second chance in life so I got her home, dolled her up and now she is playable again. I had no idea what model it was when I got it and I was actually hoping that it would be a Model 30 from the late 1930’s, they look very similar but it turned out to be a Model 32 from the mid 1940’s instead, which isn’t bad. I guess I just wanted to have a Levin that was older than my 1942 Levin Model 65. It’s pretty close to my 1951 Levin Royal in sound and feel but with a more casual appearance. I guess there was a shortage of tonewoods all over Europe during the war so they used what they got. This one has a hand carved 3-piece Romanian spruce top and you can even see a couple of knots around the f-holes. I don’t really mind, together with all the cracks it’s just adding to that old worn archtop look and feel. The back is really beautiful though and the neck feels great, really fat and chunky as I like. It also has a quite different sunburst compared to what Levin normally used in 1940-50’s. Levin used to copy Gibson’s tobacco sunburst but this one has more of a cherry sunburst.

Levin Model 32 Made in Sweden 1946

Levin Model 32
Non-cutaway. Body width: 420 mm, body length: 510 mm
Hand carved Romanian spruce top, mahogany back and sides
Single-bound top with unbound f-holes
Single-bound back, unbound pickguard and unbound headstock
Mahogany neck with non-adjustable T-shaped duraluminum truss rod
Single-bound rosewood fingerboard with mother-of-pearl dot inlay
Nickel plated hardware, sunburst finish and ten years warranty
Available between 1940 – 1947

Levin Catalog 1946
Levin Model 32, here between the model above, the beautiful Model 27 and the slightly cheaper Model 35. I love that the case option offered in the bottom of each ad is a plain textile bag with a zip, really, textile? The list price for the guitar in 1946 was 285 SEK, around 30 Euro. The Royal listed that year at 575 SEK an the top of the line, the Deluxe at 1000 SEK. Taken from a 1946 Levin archtops catalog, thanks to Vintage Guitars Sweden

Levin Model 32 Made in Sweden 1946
She looked a bit sad when she arrived, but there was nothing that couldn’t be fixed

Levin Model 32 Made in Sweden 1946
First I had to deal with the crack that was running along the whole bottom side, from the upper bout to the endpin. There was also another crack, or hole, that the previous owner had glued in perhaps not the most discrete fashion.

Levin Model 32 Made in Sweden 1946
I have never attempted to glue anything this big before but there is a first time for everything. I noticed that there was a piece of wood missing so I started with making the hole square and then I fitted a little piece of wood in the exact same size. The main problem I had was that the guitar had been cracked for so long, with the tension of the strings I think, so the whole side had kind of warped. In parts the crack was overlapping in one way then suddenly changed to go the other way. Which meant that when I was trying to close the crack it didn’t line up, at all. I did my best and with a bit of force and a lot a clamps I managed to get it to close at least, even if it didn’t line up perfectly. I know that the correct way of doing this would have been to glue cleats on the inside and perhaps a string coming trough that you can tighten from the outside or even better, magnets, but unfortunately the crack was just over the kerfing which would have made it hard to glue any cleats on top of the kerfing. I also couldn’t figure out a way of getting any magnets inside an archtop, there wasn’t really any way of getting my hands in there.

Levin Model 32 Made in Sweden 1946
It went ok for being my first time and it seems to be very solid after letting the fish glue cure for 48 hours, I added some extra glue over the old crack too just to be on the safe side. I sanded everything smooth and then lacquered with shellac, I was trying to match the original lacquer but it turned out to be impossible to copy the sunburst. Maybe I can figure out a way and redo this part but at least now the guitar is playable. I buffed up the old lacquer and made it blend with the new shellac by polishing it with metal polish, that always works great on old guitars. It’s the same technique I use for the back of the necks, filling the dents with nitro lacquer and then sand it smooth and buff it up with metal polish. The original machine heads are pretty wonky but they work fine and cleaned up nicely, just like the tail piece, so I decided to keep the guitar all original.

4 Comments
March 3, 2015

1979 Fender Stratocaster

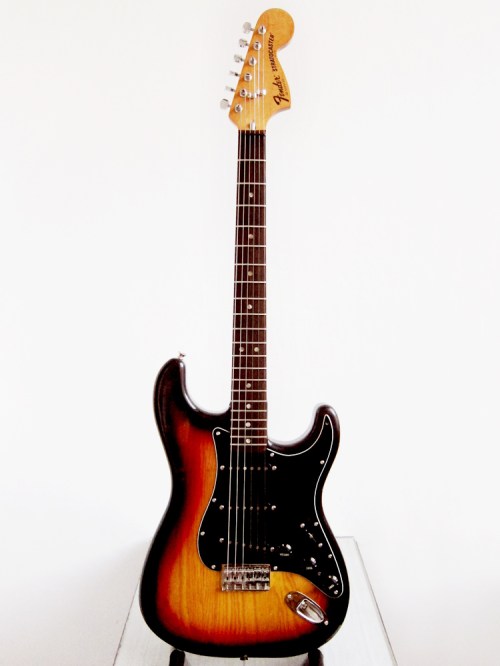

Fender Stratocaster Made in USA 1979, 3 tone Sunburst, hardtailFender Stratocaster Made in USA 1979, 3 tone Sunburst, hardtail
Fender Stratocaster, Made in USA at the Fullerton plant in 1979

This weekend I restored my 1979 Fender Stratocaster to it’s original state. One pot has been changed at some point and I needed to put in a new 5 ways switch but the rest seems to be all original. Well the middle pickup is a bit of a mystery, I’m not sure if it’s a Fender pickup or if it’s something completely different, either way it sounds awesome. It has staggered pole pieces, something that Fender stopped with in the mid 1970’s so I would say that it’s either an older Fender or a newer Japanese pickup. I really like the look of the guitar now, a classic late 1970’s 3 tone sunburst hardtail Fender Stratocaster. The guitar is for sale here.

Fender Stratocaster Made in USA 1979, 3 tone Sunburst, hardtail

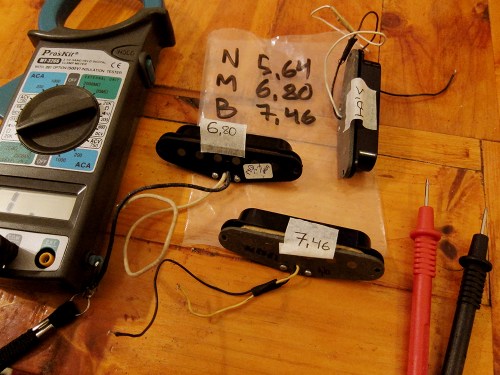

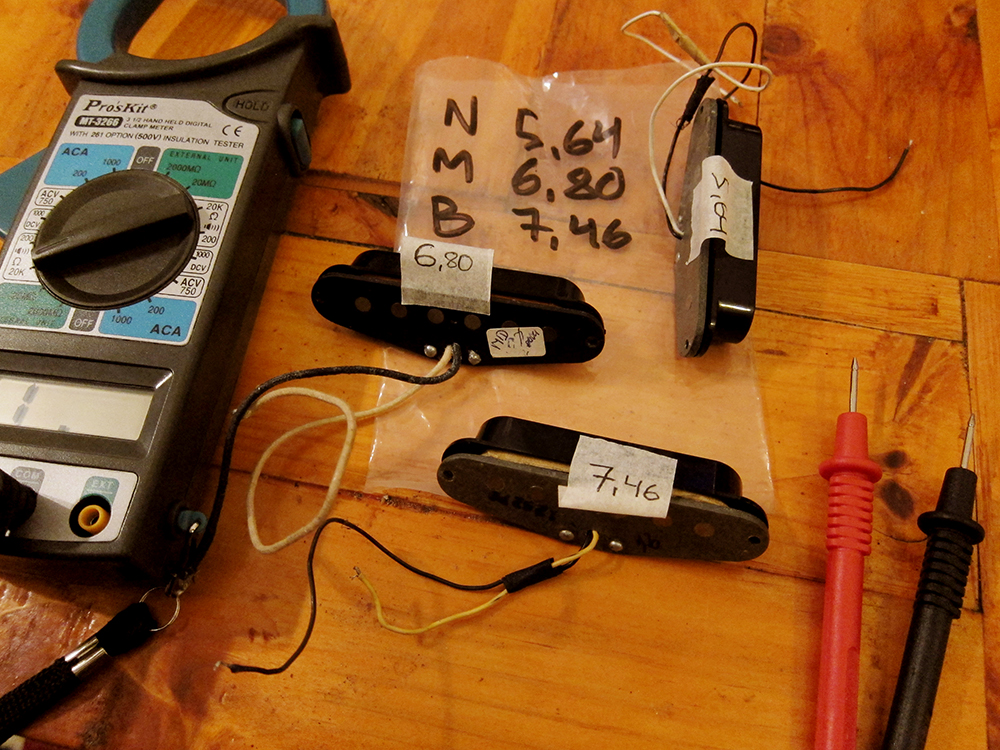

First I had to check that the original pickups even worked. After getting pretty strong readings I decided to install them, now I knew in which order to put them too since they weren’t marked with neck, middle and bridge.

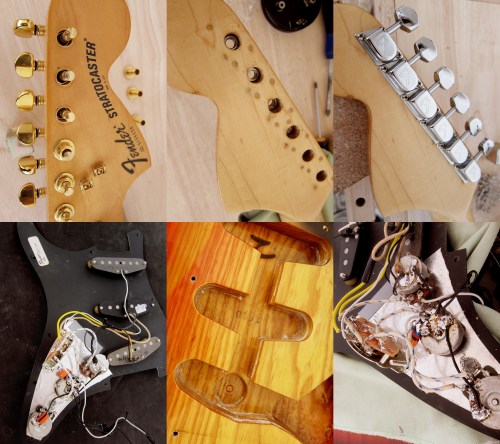

Fender Stratocaster Made in USA 1979, 3 tone Sunburst, hardtail
I filled the old holes from the gold Gotoh machine heads with a tooth pick and normal wood glue, it worked really well. When I removed the terrible shielding job that was done before I could for the first time see the serial number, this body was made on a Monday in the 5th week of 1979. The neck is from 1978 which makes sense if it was put together early the following year. I have to go through the soldering again though, there is something that isn’t right. I noticed when I had put it back together that there something wrong with the middle pickup, it sounded like a wah wah stuck in one position. Well first thing I realised was that the switch was the wrong way around so that has been flipped now, then after a lot of detective work I figured out what was wrong. The middle pickups wires was the other way around, the white was the ground and the black was going to the switch. There was also an extra capacitor on the second tone pot that I had to remove. Now everything works perfectly and it sounds awesome, I really love this guitar. Thanks again to Dating Late 1970’s Fender Stratocasters for all the useful information.

3 Comments
