Levin

I made a post about my Levin guitars back in 2011 when I started to collect them but it feels like it’s time for an update. Here they are:

Levin Model 2 Parlour Made in Sweden 1914Levin Model 3 Made in Sweden 1914

Levin Goya F-11 Made in Sweden by Levin 1963Goya F-11 Made in Sweden by Levin in 1963

Rondo Model 29 Made in Sweden by Levin in 1960Rondo Model 29 Made in Sweden by Levin in 1960

Levin LT-14 / Goya T-14 Made in Sweden 1965Levin LT-14 Made in Sweden 1965

Levin LT-16 Made in Sweden 1966Levin LT-16 Made in Sweden 1966

Levin Goya T-16 Made in Sweden 1965
Goya T-16 Made in Sweden by Levin in 1965

Goya T-16, made in Sweden by Levin in 1966
Goya T-16 Made in Sweden by Levin in 1966

Levin LS-16 Made in Sweden 1963Levin LS-16 Made in Sweden in 1963

Levin LS-18 Made in Sweden 1960Levin LS-18 Made in Sweden 1960

Levin LT-18 Made in Sweden 1963Levin LT-18 Made in Sweden 1963

Levin LT-18 Made in Sweden 1966Levin LT-18 Made in Sweden 1966

Levin LT-18 Made in Sweden 1968
Levin LT-18 Made in Sweden 1968

Levin Goya T-18 Made in Sweden 1966Goya T-18 Made in Sweden by Levin 1966

Levin Goya T-23 Made in Sweden 1966
Levin Goya T-23 Made in Sweden 1966

Levin LM-26 1959Levin LM-26 Made in Sweden 1959

Levin LM-26 Made in Sweden 1959Levin LM-26 Made in Sweden 1959

Levin LM-26 Made in Sweden 1963Levin LM-26 Made in Sweden 1963

Levin Goya 172 Made in Sweden 1970Goya GG-172 Made in Sweden by Levin 1970

Levin Goya 163 Made in Sweden 1968 #307008Goya Model 163 Made in Sweden by Levin 1968

Levin Model 174 Made in Sweden 1972Levin Model 174 Made in Sweden 1972

Levin Model 3 Royal Made in Sweden 1951Levin Model 3 Royal made in Sweden 1951

These Levin guitars used to be a part of my collection but I had to sell them to make space for other Levin guitars:

Levin Model 32 Made in Sweden 1946Levin Model 32 made in Sweden in 1946

Levin Model 65 parlour guitar Made in Sweden 1942Levin Model 65 parlour guitar Made in Sweden 1942

Levin Model 13 Ambassadör Made in Sweden 1950Levin Model 13 Ambassadör Made in Sweden 1950



Levin 315N / 320N

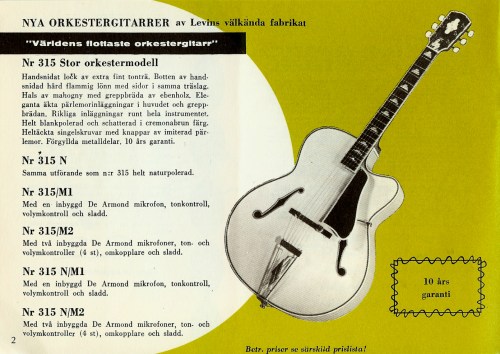

Levin 315N, 1959 Harriers Musikkatalog, Levin catalogLevin 315N without pickups from the 1959 Harriers catalogue, taken from Vintage Guitars Sweden

I would really like to find a Levin 315 or 320 in natural colour, ideally with two pickups. If you happen to have one that you would like to sell, please get in touch, claesgellerbrink@gmail.com. I’m only interested in the Levin 315N/M1 or M2 and Levin 320N/M1 or M2.

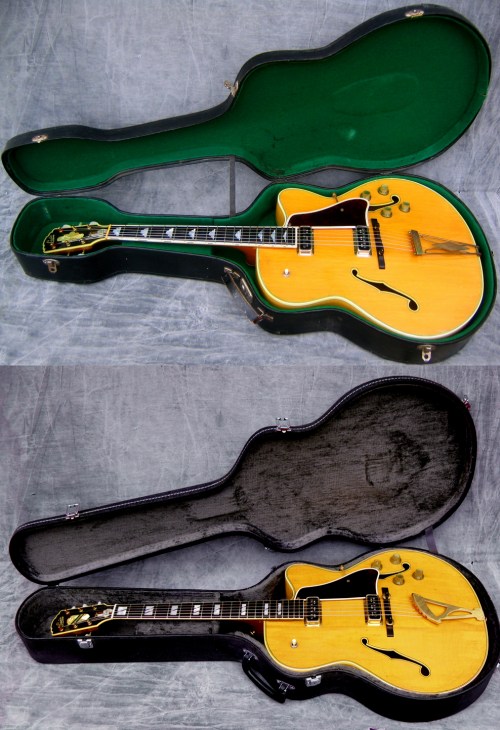

Levin 315N/M1 or M2, or Levin 320N/M1 or M2.So beautiful, I would love to find either a Levin 315N or Levin 320N with one (M1) or two (M2) DeArmond pickups.

ARTEC MHFC93

Levin Model 32 Made in Sweden 1946, Artec MHFC93-CRLevin Model 32 made in Sweden by Levin in 1946

I’ve finally received my Artec MHFC93-CR from EY Guitar, the order got lost and took 3 months to arrive. Last weekend I got around to install it on my 1946 Levin Model 32 and I’m pretty impressed with how good it sounds for being so inexpensive.

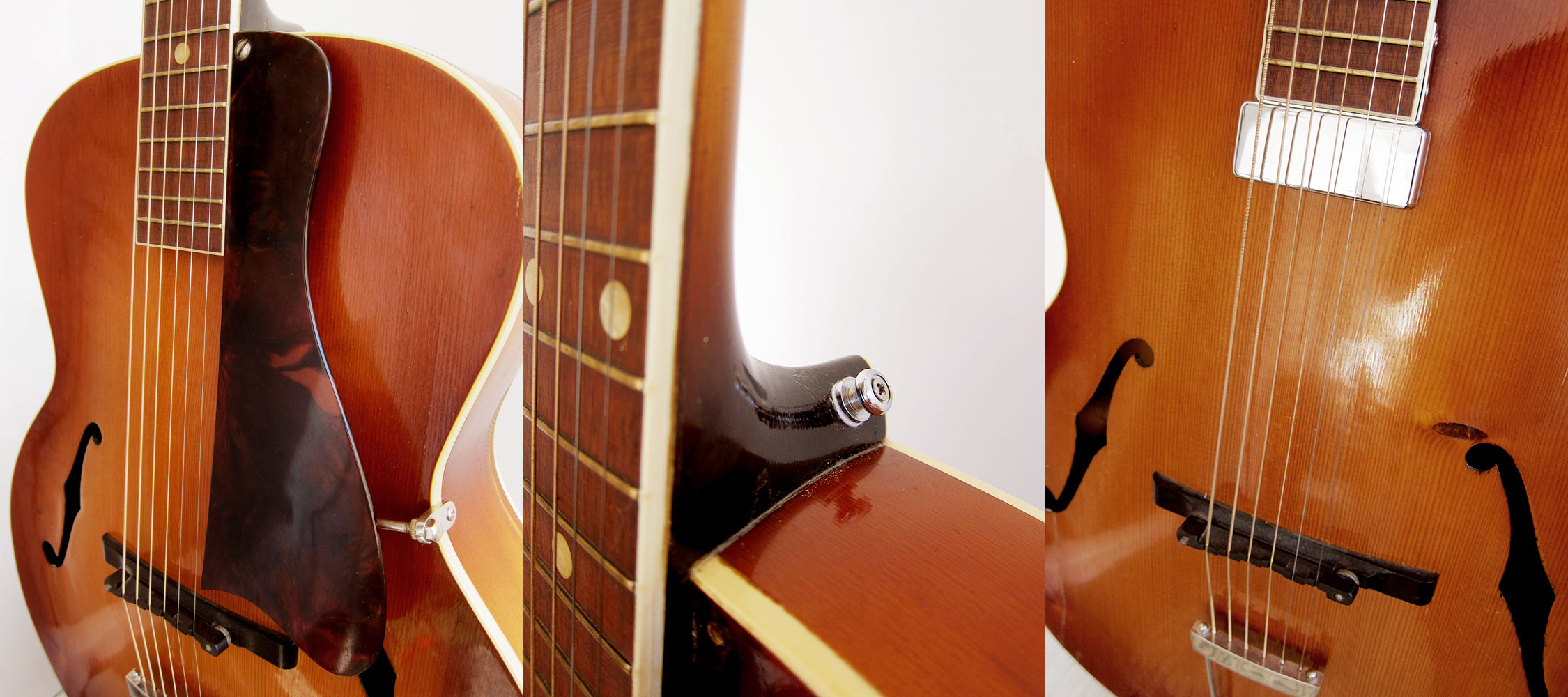

Levin Model 32 Made in Sweden 1946, Artec MHFC93-CRUnfortunately I had to remove the pickguard, well it was actually quite annoying and always in the way when I played so it was more of an aesthetic loss. I also installed an old vintage strap button while I fitted the pickup so now the guitar is ready to be gigged.

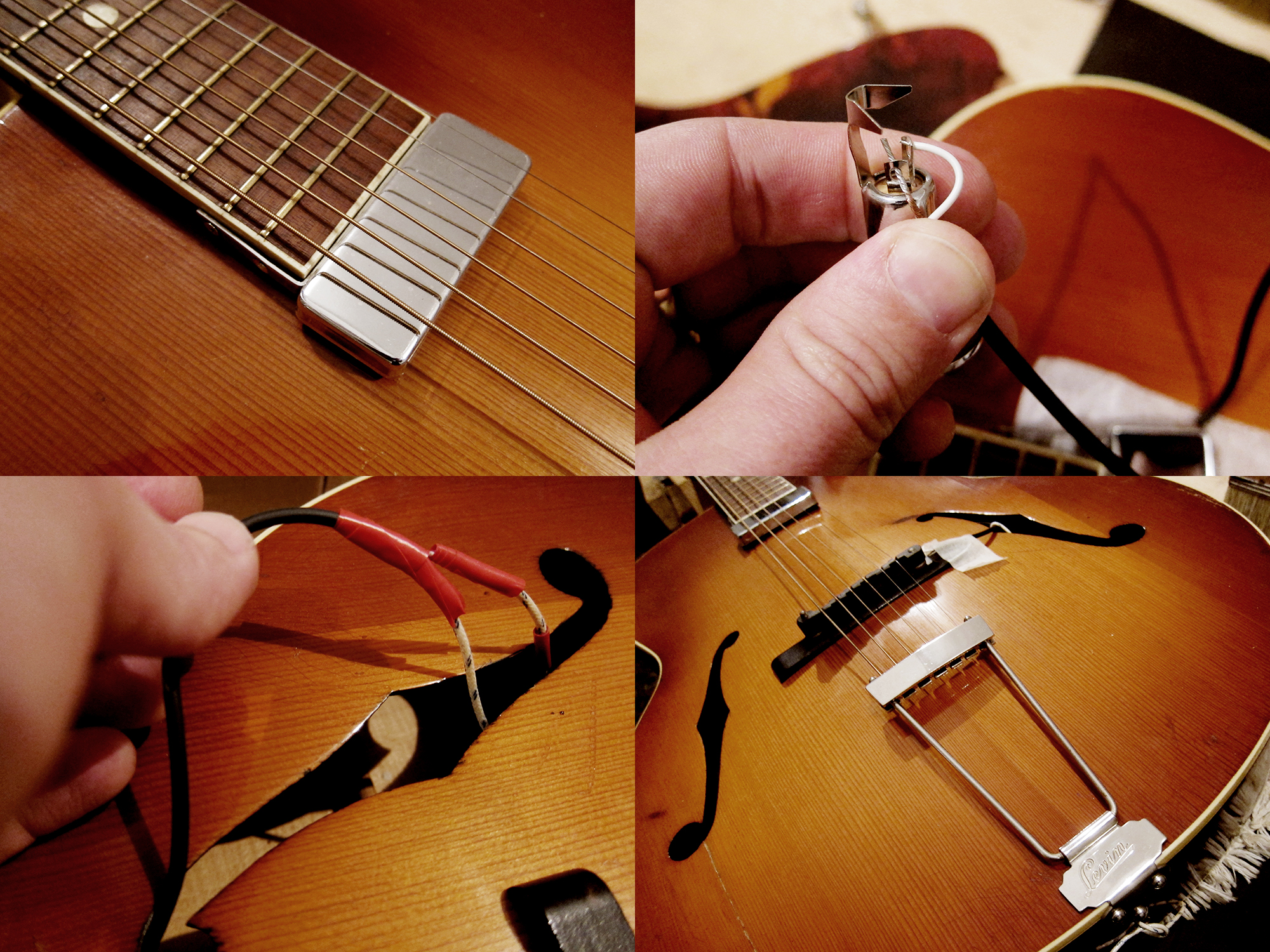

Levin Model 32 Made in Sweden 1946, Artec MHFC93-CRThe installation was pretty straight forward in the end but it took a bit of figuring things out so I completely forgot to take more pictures. First I made a small hole under the fretboard extension on the right side, where the cable from the pickup could enter the body without being visible. Then I drilled a hole for the endpin jack, just like a do when I install the endpin jacks for my LR Baggs, with a 1/2 inch or 13 mm flat spade drill bit straight through the end block. I measured two cables from the endpin to the f hole, fished them up before I cut them and then soldered them to the endpin while taped to the top for not disappearing inside. Once the cable from the pickup was fished up I checked which was which and then soldered them together and stuck them to the top on the inside with a little clip on the bottom side of the f hole so they can’t be seen.

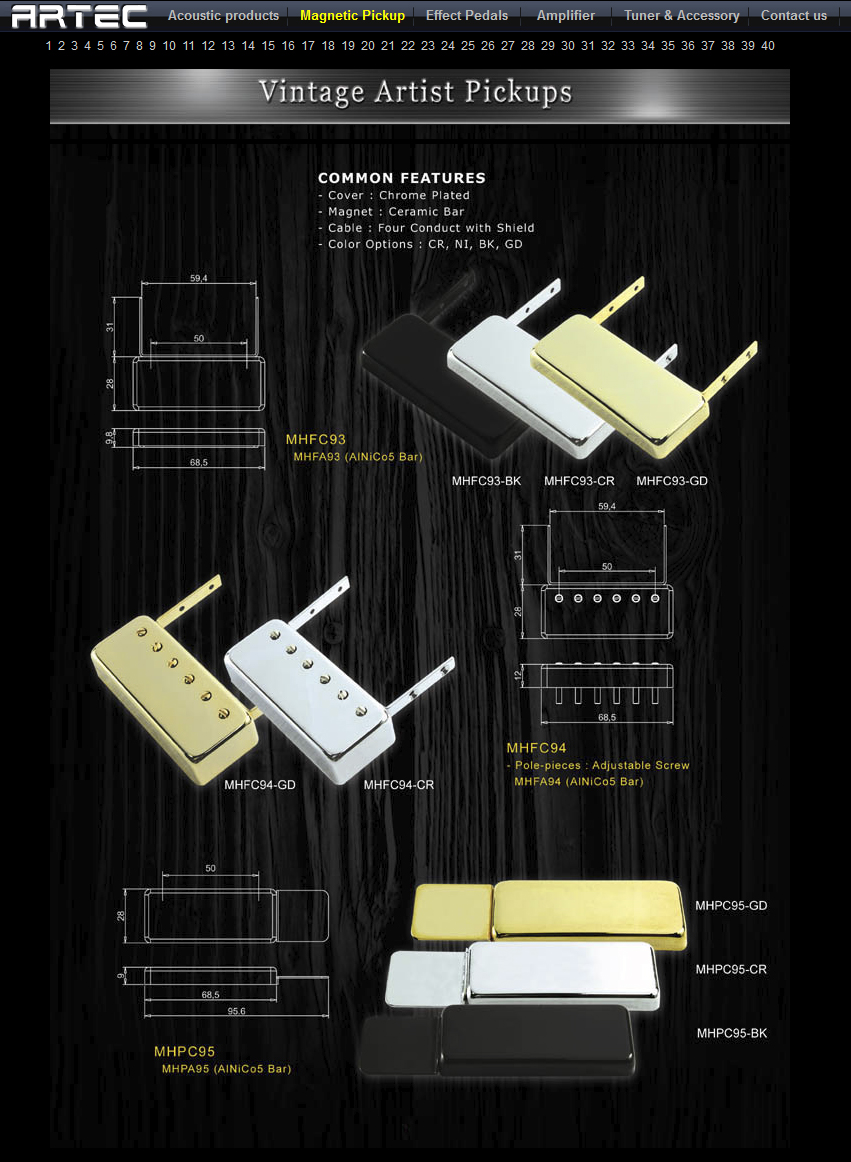

Artec MHFC93-CRArtec is perhaps not the worlds fanciest brand, especially not if you judge them by their website, but I like them and they sound very good for being so cheap.

I will get a video up as soon as possible

Levin Model 32

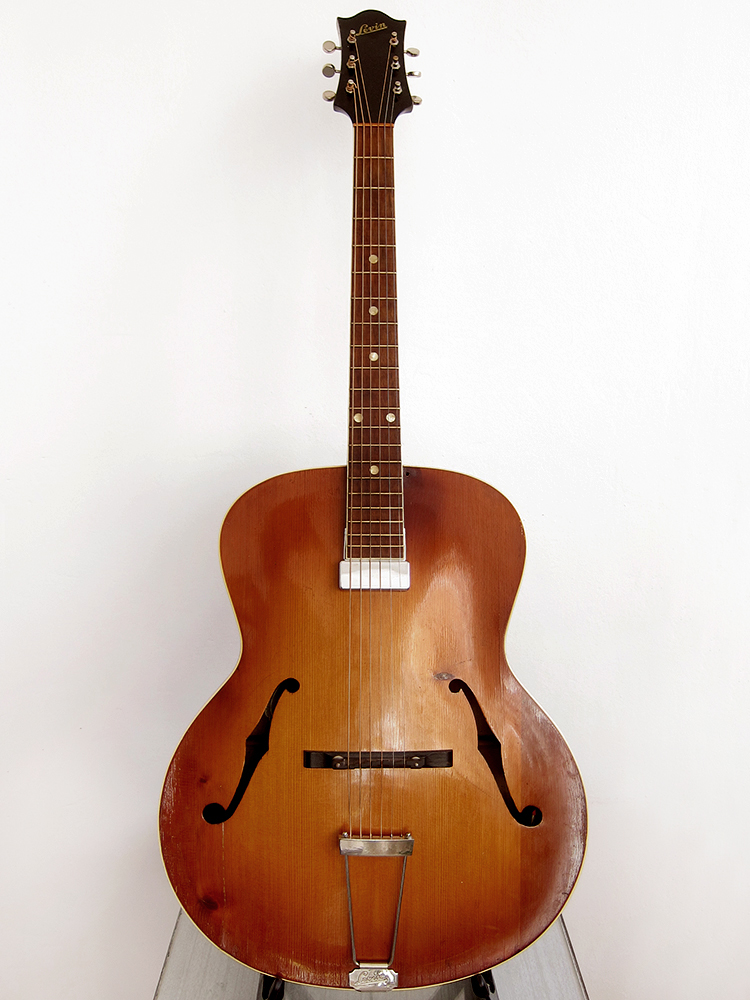

Levin Model 32 Made in Sweden 1946
Levin Model 32 made in Sweden by Levin in 1946

I recently got this old 1946 Levin Model 32Levin Model 32 from an eBay seller in Vienna. The guitar has clearly seen better days but I felt she deserved a second chance in life so I got her home, dolled her up and now she is playable again. I had no idea what model it was when I got it and I was actually hoping that it would be a Model 30 from the late 1930’s, they look very similar but it turned out to be a Model 32 from the mid 1940’s instead, which isn’t bad. I guess I just wanted to have a Levin that was older than my 1942 Levin Model 65. It’s pretty close to my 1951 Levin Royal in sound and feel but with a more casual appearance. I guess there was a shortage of tonewoods all over Europe during the war so they used what they got. This one has a hand carved 3-piece Romanian spruce top and you can even see a couple of knots around the f-holes. I don’t really mind, together with all the cracks it’s just adding to that old worn archtop look and feel. The back is really beautiful though and the neck feels great, really fat and chunky as I like. It also has a quite different sunburst compared to what Levin normally used in 1940-50’s. Levin used to copy Gibson’s tobacco sunburst but this one has more of a cherry sunburst.

Levin Model 32 Made in Sweden 1946

Levin Model 32
Non-cutaway. Body width: 420 mm, body length: 510 mm
Hand carved Romanian spruce top, mahogany back and sides
Single-bound top with unbound f-holes
Single-bound back, unbound pickguard and unbound headstock
Mahogany neck with non-adjustable T-shaped duraluminum truss rod
Single-bound rosewood fingerboard with mother-of-pearl dot inlay
Nickel plated hardware, sunburst finish and ten years warranty
Available between 1940 – 1947

Levin Catalog 1946
Levin Model 32, here between the model above, the beautiful Model 27 and the slightly cheaper Model 35. I love that the case option offered in the bottom of each ad is a plain textile bag with a zip, really, textile? The list price for the guitar in 1946 was 285 SEK, around 30 Euro. The Royal listed that year at 575 SEK an the top of the line, the Deluxe at 1000 SEK. Taken from a 1946 Levin archtops catalog, thanks to Vintage Guitars Sweden

Levin Model 32 Made in Sweden 1946
She looked a bit sad when she arrived, but there was nothing that couldn’t be fixed

Levin Model 32 Made in Sweden 1946
First I had to deal with the crack that was running along the whole bottom side, from the upper bout to the endpin. There was also another crack, or hole, that the previous owner had glued in perhaps not the most discrete fashion.

Levin Model 32 Made in Sweden 1946
I have never attempted to glue anything this big before but there is a first time for everything. I noticed that there was a piece of wood missing so I started with making the hole square and then I fitted a little piece of wood in the exact same size. The main problem I had was that the guitar had been cracked for so long, with the tension of the strings I think, so the whole side had kind of warped. In parts the crack was overlapping in one way then suddenly changed to go the other way. Which meant that when I was trying to close the crack it didn’t line up, at all. I did my best and with a bit of force and a lot a clamps I managed to get it to close at least, even if it didn’t line up perfectly. I know that the correct way of doing this would have been to glue cleats on the inside and perhaps a string coming trough that you can tighten from the outside or even better, magnets, but unfortunately the crack was just over the kerfing which would have made it hard to glue any cleats on top of the kerfing. I also couldn’t figure out a way of getting any magnets inside an archtop, there wasn’t really any way of getting my hands in there.

Levin Model 32 Made in Sweden 1946
It went ok for being my first time and it seems to be very solid after letting the fish glue cure for 48 hours, I added some extra glue over the old crack too just to be on the safe side. I sanded everything smooth and then lacquered with shellac, I was trying to match the original lacquer but it turned out to be impossible to copy the sunburst. Maybe I can figure out a way and redo this part but at least now the guitar is playable. I buffed up the old lacquer and made it blend with the new shellac by polishing it with metal polish, that always works great on old guitars. It’s the same technique I use for the back of the necks, filling the dents with nitro lacquer and then sand it smooth and buff it up with metal polish. The original machine heads are pretty wonky but they work fine and cleaned up nicely, just like the tail piece, so I decided to keep the guitar all original.

Levin Royal

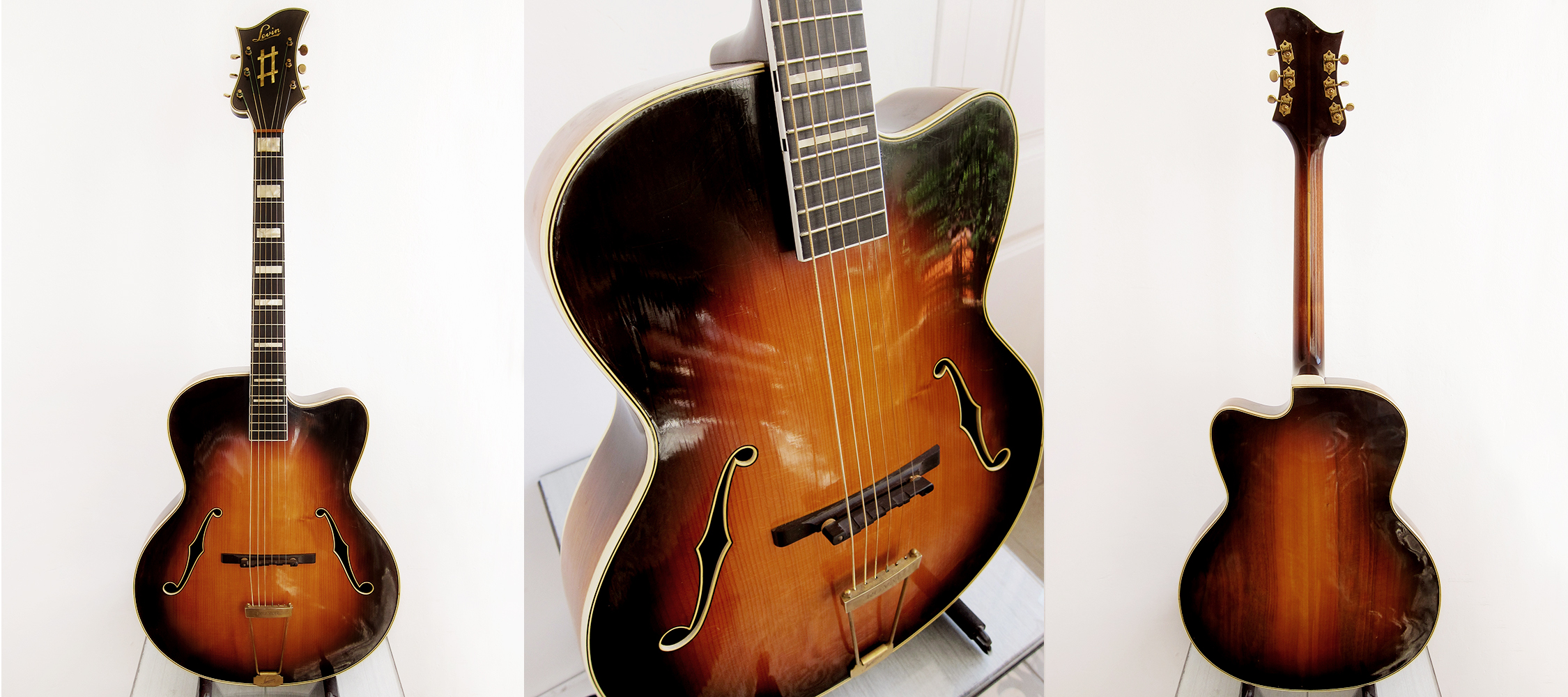

Levin Model 3 Royal Made in Sweden 1951
Levin Model 3 Royal made in Sweden by Levin in 1951

I’m so excited about my new gal, last week I received a 1951 Levin Model 3 Royal. I got it fairly cheap from Jam, a guitar shop in Stockholm and managed to get it to Spain in one piece in less than a week, very impressive. This is my 9th Levin, number 8th was a Goya GG-172 that I received back in June but haven’t had time to fix up yet. I tried one of these Levin orchestra guitars when I was back in Sweden in May and felt both confused and intrigued by it, I wasn’t sure if I was supposed to play it like an acoustic or electric guitar. Now I know that you can play pretty much anything on it, it sounds as full and rich as my other acoustic Levin’s but with the playability and feel of an hollow bodied electric guitar. I was actually really surprised how good the bass response was, perhaps because of the hand carved Rumanian spruce top and walnut back, it’s my first guitar with walnut and I really like it. Levin Royal is the 3rd fanciest orchestra guitar that Levin made during the 1930-50’s, with the De Luxe and Solist above it. The De Luxe is massive so I was worried that the Royal would be really big too, Levin Model 1 De Luxe (Body width: 475 mm), Levin Model 2 Solist (Body width: 445 mm) and Levin Model 3 Royal (Body width: 420 mm), but it’s just 2 cm wider than my Levin 174 and the other Goliath sized acoustic Levin’s I have. I’m really happy with it and will definitely look in to the possibilities of electrifying it, without ruining it, so I can use it live with Chest Fever.

Levin Model 3 Royal Made in Sweden 1951
Levin Model 3 Royal Made in Sweden 1951

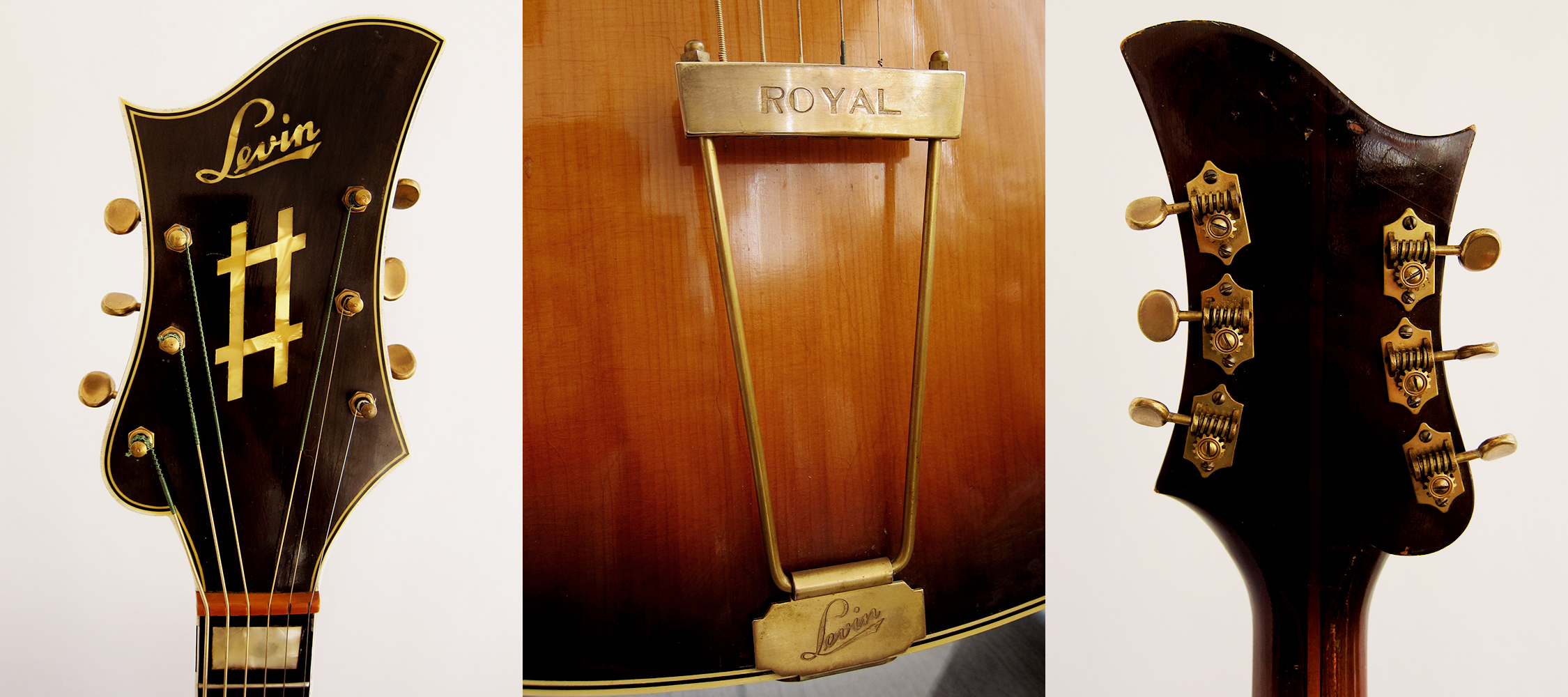

It’s in pretty good state for it’s age and almost all original, the pickguard is missing and one of the pearloid block inlays on the fretboard has been replaced with a plastic one. The only thing I had to do when I got it was to raise the action, it was way too low for me, polish the frets and even out the ebony fretboard a bit, some of the inlays was sticking up. The neck is pretty straight, it does have a  T-shaped duraluminum truss rod inside but it’s non-adjustable so there isn’t much you can do without heating and reshaping the neck but that’s not needed yet.

Levin Model 3 Royal, Vintage guitars SwedenLevin Model 3 Royal, Vintage guitars Sweden

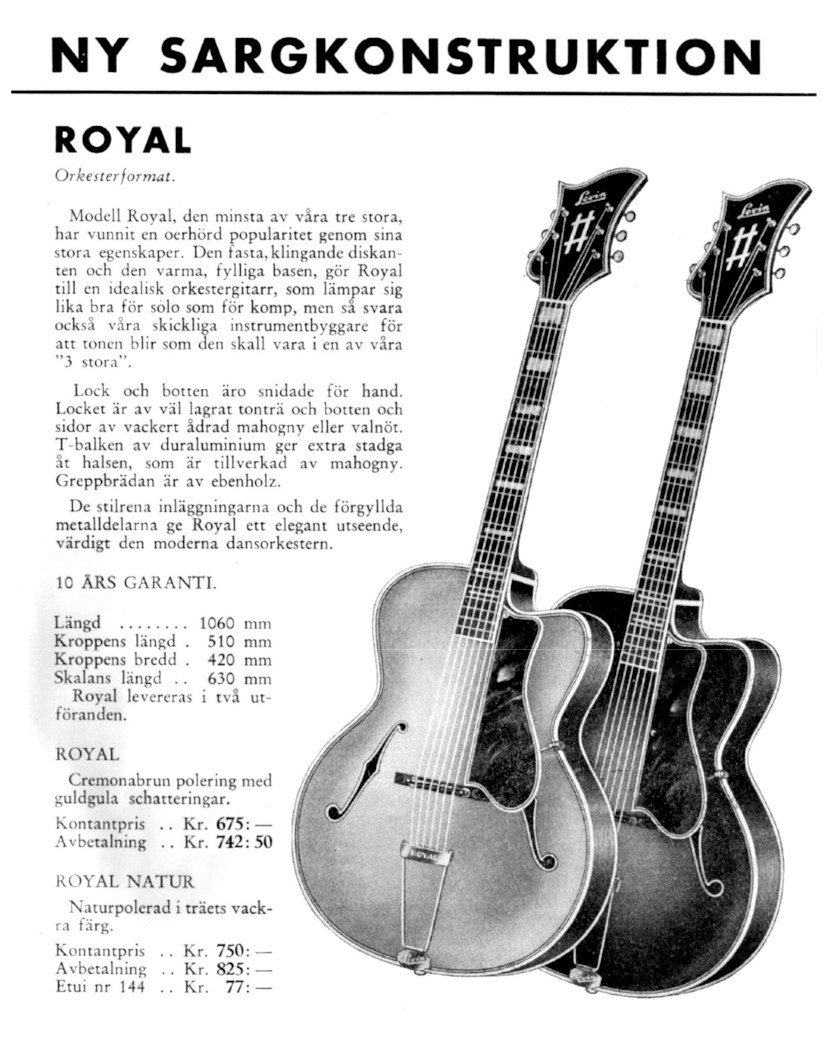

Taken from a 1948 Levin archtops catalog, thanks to Vintage Guitars Sweden

Levin Model 3 Royal
Body width: 420 mm, body length: 510 mm
Hand carved Romanian spruce top with mahogany or walnut back and sides
4-ply bound top with double-bound f-holes, 4-ply bound back, triple-bound pickguard
Mahogany neck with non-adjustable T-shaped duraluminum truss rod
Triple-bound headstock with perloid music sharp sign inlay
Single-bound ebony fingerboard with pearloid block inlay
Grover Sta-Tite style tuners, gold plated hardware
Sunburst or natural finish and ten year warranty

Django Reinhardt at the Aquarium, New York City, 1946
This is how awesome I think I look with my new guitar. Django Reinhardt is playing Fred Guy’s Levin De Luxe backstage at the Aquarium in New York City 1946. © William Gottlieb
