How to… carve a bridge

by claesgellerbrink

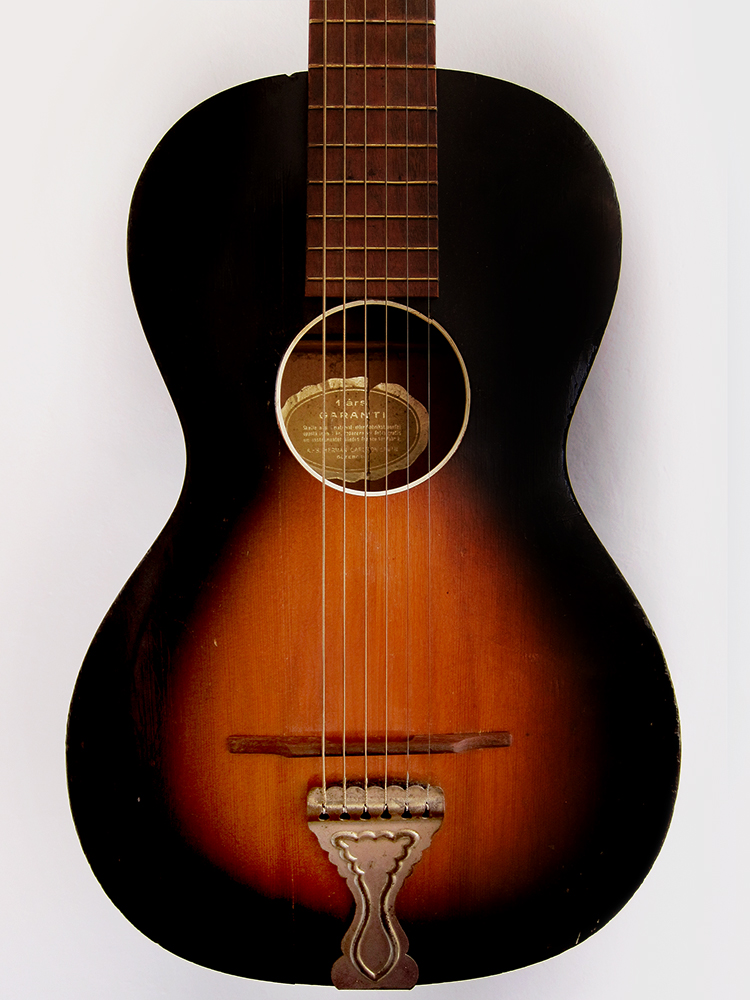

Levin Model 65 parlour guitar Made in Sweden 1942
Levin Model 65 parlour guitar Made in Sweden 1942

Last weekend I decided to make a new bridge for my 1940’s Levin model 65. I actually did the same thing about a year ago but with less success, you can read about it here. This time I had more tools, better material and at least some knowledge of working with wood.

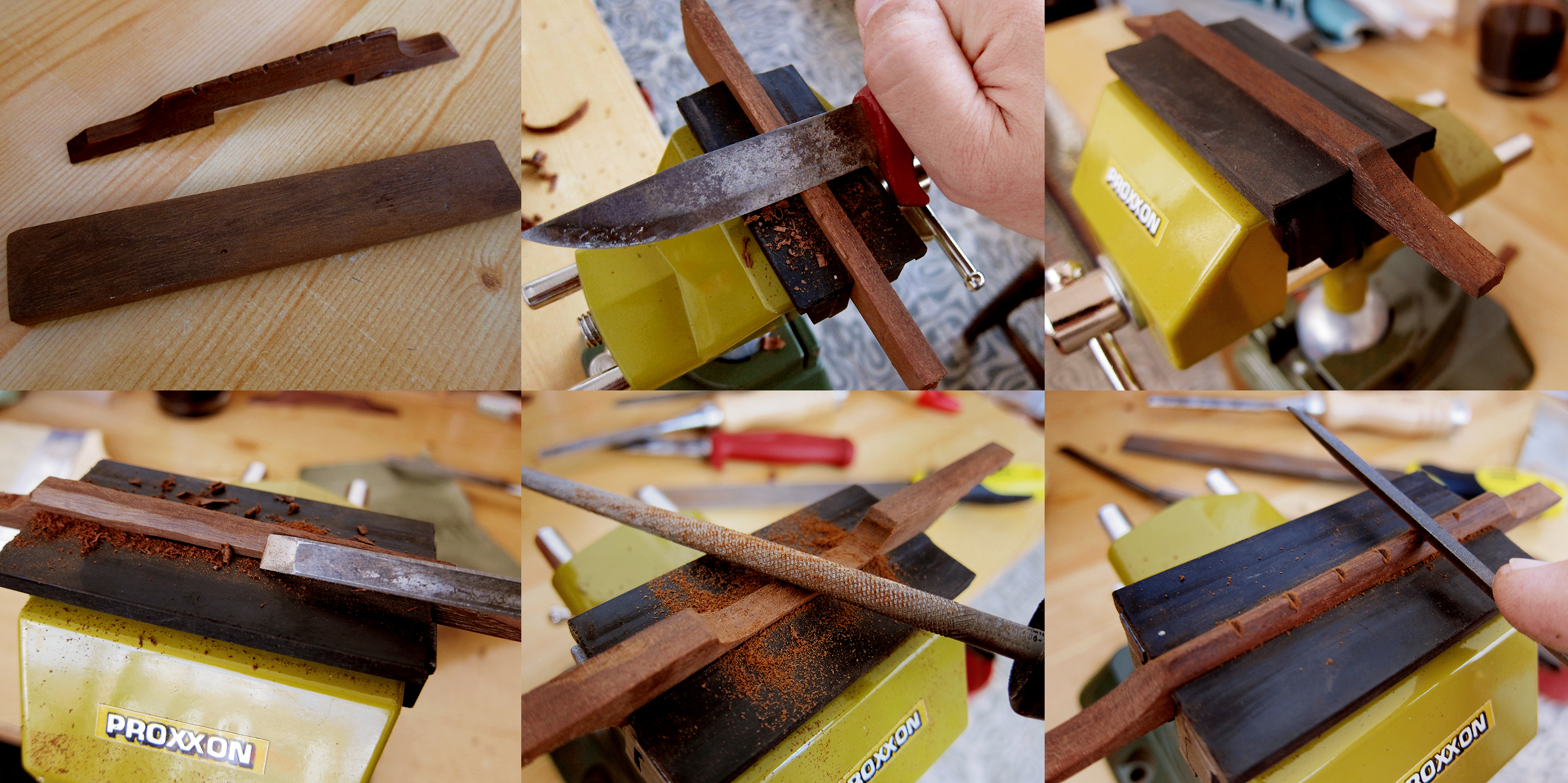

Levin Model 65 parlour guitar Made in Sweden 1942I started with a rosewood blank that I carved roughly to the right height with my trusty old Mora kniv, a cheap Swedish knife that solves most of my guitar related problems. Then I carved the shape of the edges, I just marked where to start and then carved it in to a rounded slope. I got the top in to a nice triangle shape with a narrow chisel and then cut out the arch in the bottom with a round file. I compared it to the old bridge to get the string spacing right and then just made little groves with a small triangle file. After a bit of lemon oil I was ready to try it out and it worked perfectly.

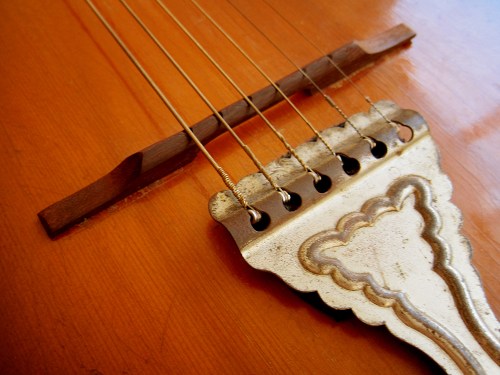

Levin Model 65 parlour guitar Made in Sweden 1942The final result, a new bridge for not only the oldest Levin I own but the olderst guitar I’ve ever actually had in my hands.
