Levin guitars for sale

I need to clear some space so I’ve decided to part with the following Levin guitars, there are some other guitars for sale too. If you are not familiar with the Swedish guitar maker Levin then please click on the link. All guitars were hand built in Gothenburg Sweden and made with the finest solid tone woods. Their alpine spruce tops were one of the reasonw why C. F. Martin & Co. bought Levin in June 1973.

Levin Model 2 Parlour Made in Sweden 1914
Levin Model 3
, Made in Sweden 1914 1100€ SOLD
A beautiful all original over 100 years old Levin parlour guitar. Spruce top with ladder bracing, birch back and sides. Pyramid bridge, bone machine head buttons and real mother-of-pearl dot inlays. It’s in great shape for it’s age and sounds amazing for it’s size. Neck, fretboard and frets are fine but the action is little bit high, it could improve with lighter strings. You can read more about the guitar here and listen to it in this Youtube clip.

Levin Goya F-11 Made in Sweden by Levin 1963
Levin Goya F-11, Made in Sweden 1963, 550€ SOLD
A typical folk guitar, fan braced and made for both nylon and steel string. It’s pretty worn but still very beautiful with it’s flamed birch back and spruce top. These type of guitars got really popular in the mid 1960’s during the folk boom in the US and Levin built quite a few under the Goya brand to compete with the Gibson F-25 and other Spanish guitar sized steel stringed folk guitars of the time. A great guitar for finger picking and very fun to play. It had a recent neck reset so the action is low. You can read more about the guitar here and listen to it in this Youtube clip.

Rondo Model 29 Made in Sweden by Levin in 1960
Rondo Model 29, Made in Sweden by Levin in 1960, 550€ 450€
A lovely little Swedish made parlour guitar. Rondo was made by Levin for Musik AB Westin & Co, a music store and publishing company in Stockholm with a large mail order business. It looks pretty similar to a Levin 119 and was made for both steel and nylon strings, this was pretty common on smaller Levin guitars in the 1950-60’s. It’s a very nice little guitar to play and it has more volume and sounds sweeter than expected, perhaps because it’s fan braced instead of ladder braced. This guitar can’t be compared to a cheap machine made guitar like Harmony, Silvertone or Framus. The action is a bit high but would easily come down with lighter strings. You can read more about the guitar here and listen to it in this Youtube clip.

Levin Model 32 Made in Sweden 1946
Levin Model 32, Made in Sweden 1946, 650€ SOLD
A really cool Levin archtop from the 1940’s. Hand carved Romanian spruce top with mahogany back and sides. The Levin archtops are loud and sounds almost as good as a Levin flat top guitar acoustically, you can’t compare this to any of the machine made archtops like Harmony, Silvertone or Framus. It has some damage to the side which has been glued and is now solid, but can be seen. It’s all original but has an Artec MHFC93-CR pickup installed so it’s ready to be taken out and gigged with. If you are looking for a worn old archtop that sounds amazing, well here it is. You can read more about the guitar here and listen to it in this Youtube clip.

Levin LT-14 / Goya T-14 Made in Sweden 1965
Levin LT-14, Made in Sweden 1965, 850€ SOLD
An extremely rare Levin guitar, I’ve never seen another. It’s the smallest of the 1960’s high end Levin guitars and is roughly like a Martin 00 in size. It’s an awesome guitar, pretty much like a Levin LT-16 but smaller and with a bit less bass but with more clarity in the upper register instead. It’s ladder braced instead of X-braced which gives it a perfect sound for finger picking. It has a beautiful alpine spruce top with a bit of bear claw and mahogany back and sides. The guitar is all original and incredible well-kept for being over 50-years old. You can read more about the guitar here and listen to it in this Youtube clip.

Levin Goya 172 Made in Sweden 1970
Levin Goya Model GG-172, Made in Sweden 1970, 700€ 500€
The Levin LT-16 if my favourite Levin shape and this is the late 1960’s Goya version with the large headstock and individual height adjustable saddles. These guitars are 38 cm wide just like a Martin 000, it’s a very nice size to play. Slightly smaller than a normal Dreadnought but with decent bass from the solid mahogany back and sides. The guitar has some wear but the neck is straight and fretboard and frets are fine. The original Van Gent machine heads are in good shape but the pickguard is a bit uneven from being badly glued in a previous life. Overall a great Levin guitar and very hard to find outside the US. You can read more about the guitar here and listen to it in this Youtube clip.

Goya Model 163 Made in Sweden 1968
Levin Goya Model 163, Made in Sweden 1968, 800€ SOLD
The classic Levin LM-26 in it’s late 1960’s Goya version with the large headstock and individual height adjustable saddles. It has a nice sunburst alpine spruce top with solid flame maple back and side. The guitar has some wear and there is a glued crack in the top but the neck is straight and fretboard and frets are fine. The original Van Gent machine heads are in good shape but the pickguard has been replaced. The sound of this Levin is very Gibson like, think Gibson J-45 from the 1960-70’s. Overall a great Levin guitar and very hard to find outside the US. You can read more about the guitar here and listen to it in this Youtube clip.

Levin Model 174 Made in Sweden 1972
Levin Model 174, Made in Sweden 1972, 900€ SOLD
In 1969 Levin replaced it’s flagship model the Levin LT-18 with the Levin Model 174, marketed in the UK as the Super Goliath Model 1855. The Levin Model 174 still had the characteristic bass side pearloid block inlays, ebony fretboard and bridge, alpine spruce top with flamed maple back and sides, but now came with the large headstock and individual height adjustable saddles. This example of the Levin Model 174 is quite unique since it has a dovetail neck-joint instead of the usual Levin bolt-on neck system. The guitar is in great shape and sounds amazing, really deep, warm and woody, like a good Levin dreadnought should.  The original Van Gent machine heads has been replaced at some point and now it has Wilkinson WJ-309 in gold on, for that Art Deco look.  Overall a great Levin guitar and very hard to find outside the US. You can read more about the guitar here and listen to it in this Youtube clip.

Levin W-30 Made in Sweden 1979Levin W-30, Made in Sweden 1979, 900€ SOLD
A beautiful and very rare Levin, most likely the only one. Since they stopped making the Levin W-30 in 1975 I believe this to built by one of the guitar builders for himself outside of the normal production. The previous owner bought a lot of parts, material and finished guitars when the factory closed down in 1979, this was one of them. He claims that it was built in 1979, otherwise it wouldn’t have been around when the factory closed, which makes perfect sense. The original Levin W-30 came with block inlays while this has beautiful snowflake inlays in the bound ebony fingerboard instead. The alpine spruce top and the rosewood back and sides are bound with a five layer wood binding which looks really classy. It’s also treated with a thin layer of lacquer instead of the heavy clear coat that the mid 1970’s Levin W-30 came with. That gives a really open and beautiful sound, very Martin like. The guitar is in very good state but has some small marks around the body. The neck is in perfect condition and so is the frets. The spruce top has had a dry crack professionally repaired so it’s stable for another 40 years. These type of cracks are very common on Levin guitars because of the dry winters in Sweden. The guitar is equipped with an under saddle pickup and ready to play with live. This is a unique 40 years old hand built Swedish guitar for a third of what a vintage Martin would cost. You can read more about the guitar here and listen to it in this Youtube clip.





ARTEC MHFC93

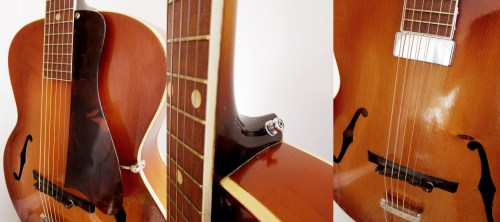

Levin Model 32 Made in Sweden 1946, Artec MHFC93-CRLevin Model 32 made in Sweden by Levin in 1946

I’ve finally received my Artec MHFC93-CR from EY Guitar, the order got lost and took 3 months to arrive. Last weekend I got around to install it on my 1946 Levin Model 32 and I’m pretty impressed with how good it sounds for being so inexpensive.

Levin Model 32 Made in Sweden 1946, Artec MHFC93-CRUnfortunately I had to remove the pickguard, well it was actually quite annoying and always in the way when I played so it was more of an aesthetic loss. I also installed an old vintage strap button while I fitted the pickup so now the guitar is ready to be gigged.

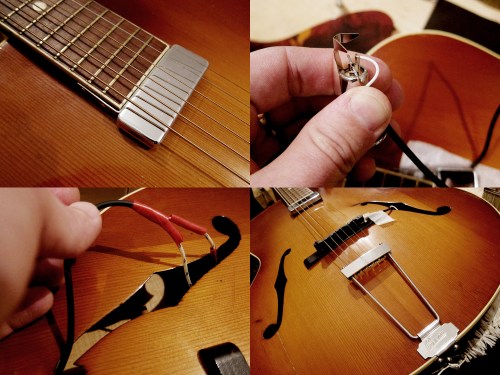

Levin Model 32 Made in Sweden 1946, Artec MHFC93-CRThe installation was pretty straight forward in the end but it took a bit of figuring things out so I completely forgot to take more pictures. First I made a small hole under the fretboard extension on the right side, where the cable from the pickup could enter the body without being visible. Then I drilled a hole for the endpin jack, just like a do when I install the endpin jacks for my LR Baggs, with a 1/2 inch or 13 mm flat spade drill bit straight through the end block. I measured two cables from the endpin to the f hole, fished them up before I cut them and then soldered them to the endpin while taped to the top for not disappearing inside. Once the cable from the pickup was fished up I checked which was which and then soldered them together and stuck them to the top on the inside with a little clip on the bottom side of the f hole so they can’t be seen.

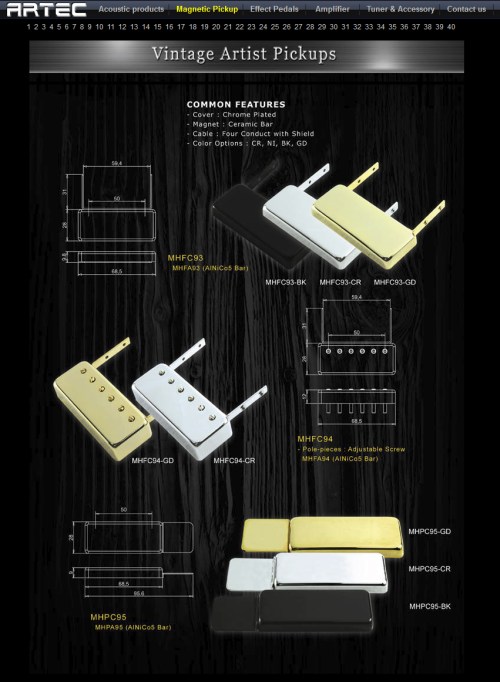

Artec MHFC93-CRArtec is perhaps not the worlds fanciest brand, especially not if you judge them by their website, but I like them and they sound very good for being so cheap.

I will get a video up as soon as possible

Happy New Year!

It’s been a great year for the Levin collection. Let’s hope that 2016 will be even better. Happy New Year everyone!

Levin CollectionLevin LT-14 (1965), Levin Goya T-16 (1965), Levin Goya T-18 (1966), Levin Goya T-23 (1966), Levin Rondo Model 29 (1960), Levin LT-16 (1966), Levin LS-16 (1963), Levin LM-26 (1959), Levin Model 65 (1942), Levin Model 13 Ambassadör (1950), Levin Model 32 (1946), Levin Model 3 Royal (1951), Levin W 12-36 (1978), Levin Goya Model GG-172 (1970), Levin Goya Model 163 (1968), Levin Model 174 (1972)

Levin Model 32

Levin Model 32 Made in Sweden 1946
Levin Model 32 made in Sweden by Levin in 1946

I recently got this old 1946 Levin Model 32Levin Model 32 from an eBay seller in Vienna. The guitar has clearly seen better days but I felt she deserved a second chance in life so I got her home, dolled her up and now she is playable again. I had no idea what model it was when I got it and I was actually hoping that it would be a Model 30 from the late 1930’s, they look very similar but it turned out to be a Model 32 from the mid 1940’s instead, which isn’t bad. I guess I just wanted to have a Levin that was older than my 1942 Levin Model 65. It’s pretty close to my 1951 Levin Royal in sound and feel but with a more casual appearance. I guess there was a shortage of tonewoods all over Europe during the war so they used what they got. This one has a hand carved 3-piece Romanian spruce top and you can even see a couple of knots around the f-holes. I don’t really mind, together with all the cracks it’s just adding to that old worn archtop look and feel. The back is really beautiful though and the neck feels great, really fat and chunky as I like. It also has a quite different sunburst compared to what Levin normally used in 1940-50’s. Levin used to copy Gibson’s tobacco sunburst but this one has more of a cherry sunburst.

Levin Model 32 Made in Sweden 1946

Levin Model 32
Non-cutaway. Body width: 420 mm, body length: 510 mm
Hand carved Romanian spruce top, mahogany back and sides
Single-bound top with unbound f-holes
Single-bound back, unbound pickguard and unbound headstock
Mahogany neck with non-adjustable T-shaped duraluminum truss rod
Single-bound rosewood fingerboard with mother-of-pearl dot inlay
Nickel plated hardware, sunburst finish and ten years warranty
Available between 1940 – 1947

Levin Catalog 1946
Levin Model 32, here between the model above, the beautiful Model 27 and the slightly cheaper Model 35. I love that the case option offered in the bottom of each ad is a plain textile bag with a zip, really, textile? The list price for the guitar in 1946 was 285 SEK, around 30 Euro. The Royal listed that year at 575 SEK an the top of the line, the Deluxe at 1000 SEK. Taken from a 1946 Levin archtops catalog, thanks to Vintage Guitars Sweden

Levin Model 32 Made in Sweden 1946
She looked a bit sad when she arrived, but there was nothing that couldn’t be fixed

Levin Model 32 Made in Sweden 1946
First I had to deal with the crack that was running along the whole bottom side, from the upper bout to the endpin. There was also another crack, or hole, that the previous owner had glued in perhaps not the most discrete fashion.

Levin Model 32 Made in Sweden 1946
I have never attempted to glue anything this big before but there is a first time for everything. I noticed that there was a piece of wood missing so I started with making the hole square and then I fitted a little piece of wood in the exact same size. The main problem I had was that the guitar had been cracked for so long, with the tension of the strings I think, so the whole side had kind of warped. In parts the crack was overlapping in one way then suddenly changed to go the other way. Which meant that when I was trying to close the crack it didn’t line up, at all. I did my best and with a bit of force and a lot a clamps I managed to get it to close at least, even if it didn’t line up perfectly. I know that the correct way of doing this would have been to glue cleats on the inside and perhaps a string coming trough that you can tighten from the outside or even better, magnets, but unfortunately the crack was just over the kerfing which would have made it hard to glue any cleats on top of the kerfing. I also couldn’t figure out a way of getting any magnets inside an archtop, there wasn’t really any way of getting my hands in there.

Levin Model 32 Made in Sweden 1946
It went ok for being my first time and it seems to be very solid after letting the fish glue cure for 48 hours, I added some extra glue over the old crack too just to be on the safe side. I sanded everything smooth and then lacquered with shellac, I was trying to match the original lacquer but it turned out to be impossible to copy the sunburst. Maybe I can figure out a way and redo this part but at least now the guitar is playable. I buffed up the old lacquer and made it blend with the new shellac by polishing it with metal polish, that always works great on old guitars. It’s the same technique I use for the back of the necks, filling the dents with nitro lacquer and then sand it smooth and buff it up with metal polish. The original machine heads are pretty wonky but they work fine and cleaned up nicely, just like the tail piece, so I decided to keep the guitar all original.
