How to… fit a LR Baggs M1

Morris W-40 1973 My new Martin D-45 copy, a Morris W-40 Made in Japan by Terada in 1973

There was a bit of work that needed to be done when I first got my Morris W-40. First of all I polished the frets, cleaned her up and oiled the fretboard. Then I needed to take care of the action which was too low, imagine that on an acoustic guitar. There was a slight forward-bow on the neck which made a bit of rattle when I played solos in the middle of the neck, at least when I hit the strings hard. I adjusted the trussrod and gave her a slight bow the other way, meaning that cowboy chords still sound beautiful and the action is still very low for being an acoustic around the 12th fret. I changed the machine heads to a pair of Grover tulip copies in gold, maybe not the best ones but it looked so much nicer than the original plain ones in chrome. Then I fitted a strap button in gold, I can’t stand having to tie the strap to the head of the guitar. I’m still waiting for the Nitrocellulose lacquer I ordered so I can fill in the three dents on the back of the neck, which is going to be a new adventure since I have never done anything like it before. Last step was to fit my new L.R. Baggs M1 soundhole pickup. I’m getting pretty used to fit endpin jacks on acoustic guitars now so it was pretty straight forward even though it was a bit more hard work on this one. I’m not sure if it was because the wood is older, or the type of wood used in this, it’s Brazilian Rosewood and maple in the 3-piece back, Now it plays and sounds amazing, I’m really pleased with it.

Fitting LR Baggs M1
I prefer to fit the endpin jacks by hand, with a small round file and then even out the hole with sandpaper when it’s big enough

Morris W-40 1973
Morris W-40 1973

Morris W-40 Made in Japan by Terada in 1973, just look at that Brazilian Rosewood and maple 3-piece back

How to… solder electronics

How to change a potentiometer
When I found my Tokai Love Rock it had a broken shaft on one of the potentiometers so I’ve been planning to change that for the last month or two. This weekend I finally got around to do it. I changed the broken one for a Alpha 500k pot, not the most expensive replacement but I had heard quite good things about Alpha so I thought I would give it a try. I have no experience what so ever when it comes to soldering so I decided to play it safe and move one cable at the time from the old to the new pot. My main concern was of course that I would get confused and not manage to get all the bits back in the right place. Everything went fine, well maybe not the cleanest soldering but pretty good for being my first time. I should of course have scratched the new pot with a bit of sandpaper to get the solder to stick better, I didn’t think of that until after.

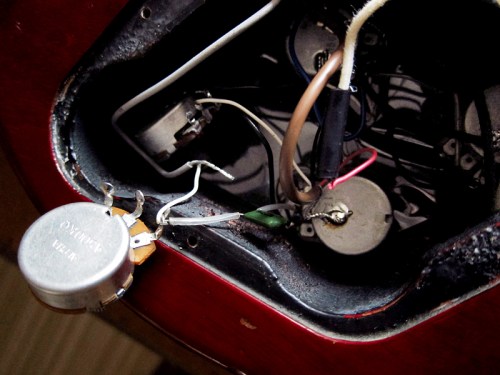

Tokai Love Rock electronicsI changed the pot one cable at the time to not mess anything up

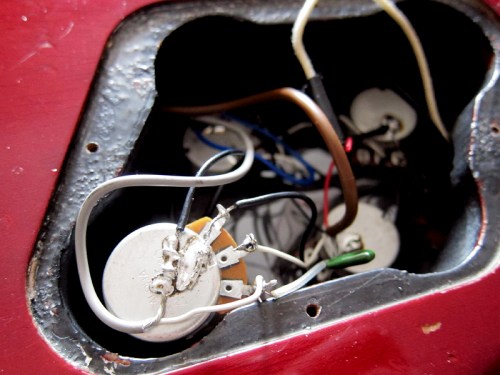

Tokai Love Rock electronicsThe final result, my newly fitted Alpha 500 k pot. Perhaps not the cleanest soldering but OK for being my first time.

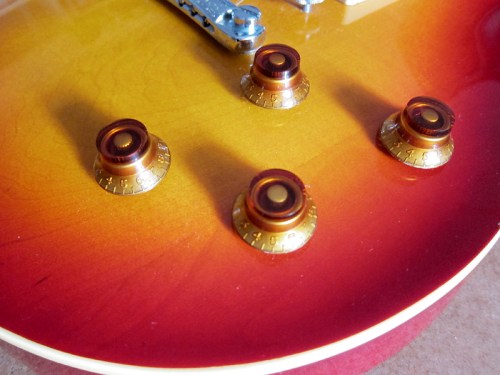

Tokai Love Rock electronicsTokai Love Rock with 4 brand knew knobs, straight from China via eBay.

How to do a 50’s vintage wiring mod for Telecaster
When I had to soldering iron out I thought I might as well sort some other stuff too. I’ve been reading about different ways of keeping the tone on a Telecaster when you turn the volume down and decided to go for the old 50’s vintage wiring on my Claescaster. It’s a really easy procedure since you just need to move one cable but when I opened the Claescaster up I realised that it wasn’t wired like the standard Telecaster, not according to Seymour Duncan’s excellent wiring diagrams, so I had to move the capacitor and another cable as well. The capacitor is the worlds biggest Orange drop but it does the trick, I might go for something smaller and a bit more suitable when I build the new Claescaster.

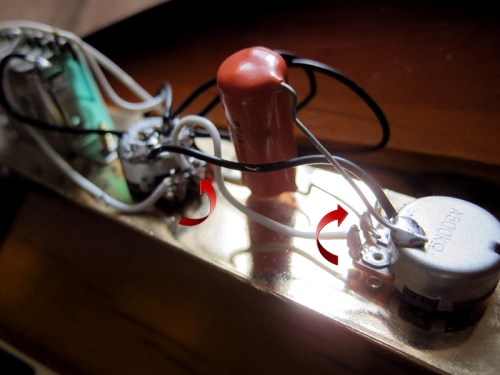

Telecaster 50's vintage wiringThe cables I swapped around on the Claescaster. It sounds great now and keeps the tone when you turn the volume down.

How to solder a endpin jack for acoustic guitars.
I found this nice old Shadow humbucker pickup for acoustic guitars when I was back in Sweden. I have a 12 string guitar from the 70’s that I bought cheap from an old Jazz musician and I had completely forgotten that it was equipped with a Shadow pickup. I brought the pickup back to Barcelona and have spent some time trying to figure out how to fit it in my Cort that I normally use for rehearsals. I bought a gold endpin jack and then I just needed to solder a mini jack cable to connect it. The question was, how the hell do I do that? I found and old RCA to mini jack cable that I decided to slaughter for this project but couldn’t find any info online how to connect it. I tried every single combination I could think of but just couldn’t get any sound out of it. Then it hit me, of course, a guitar cable has only on cable inside and then the shield around, so I have to make something similar to this. I twined the left and right together and then the same with the shield from both and it worked perfectly. It might not be the best cable in the world but it was what I got at home and it seems to work fine.

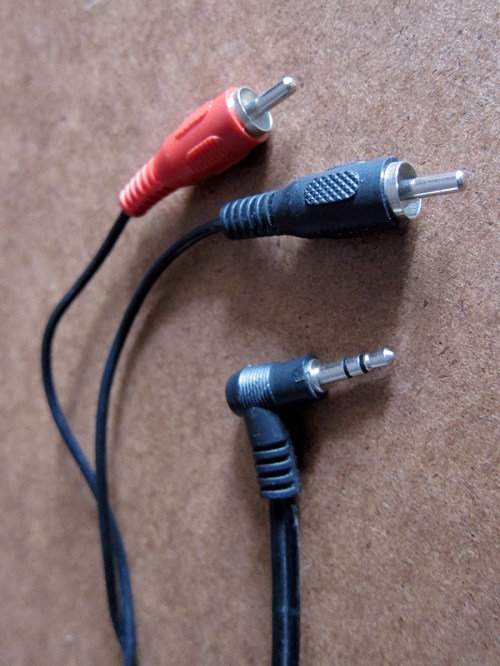

RCA to mini jackStandard RCA to mini jack.

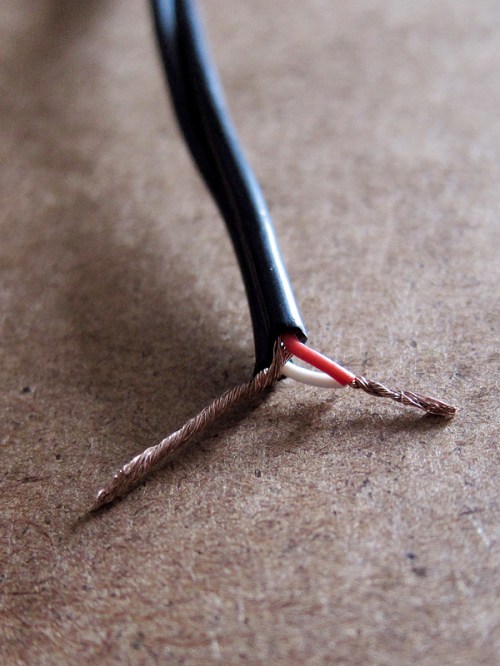

Mini jack for acoustic guitarI connected the left and right and then twined the shield together

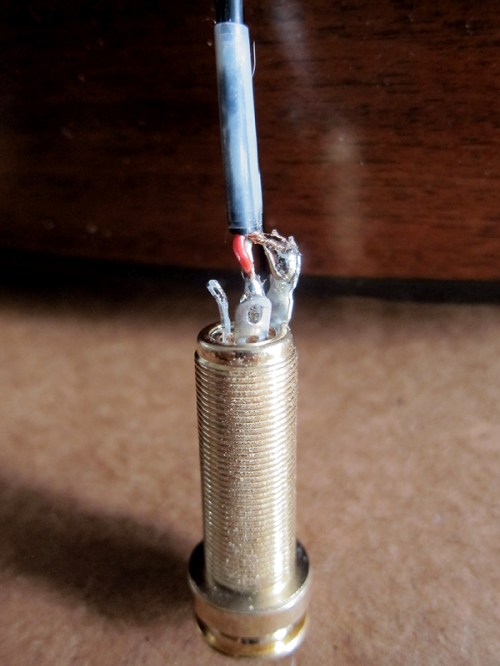

endpin jack to mini jackThe left and right soldered together to the shortest pin and then the shield to the longest.

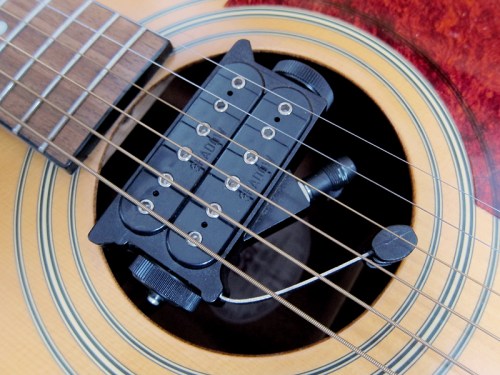

Shadow humbucker pickupShadow humbucker pickup for acoustic guitars, newly fitted on my old Cort.
